12V Auto 3500lbs Mini Electric Winch Pulling Capacity Star Model Hot Sale

Product Description

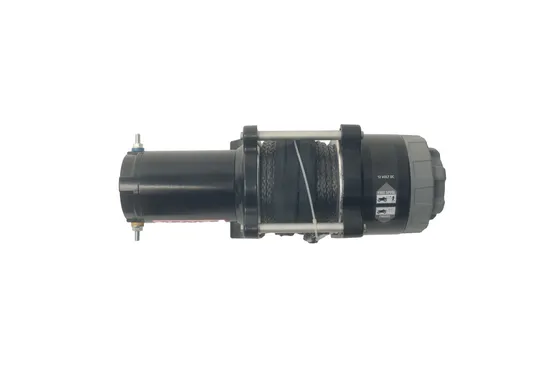

This 3,500 lbs 12V Electric Offroad Winch delivers plenty of power to assist in recovery, traversing rough terrain. This electric winch is reliable and safe addition to most off-loading adventures.
Rated line pulls: 3500 lbs.(1588 kg)
Gear reduction ratio: 136:1
Motor: Permanent magnet motor(Input Power)1.61 hp / 1.2kW (DC 12V)
Free Spooling Clutch:Turn
Braking action:Automatic in the drum
Fairlead:Hawse
Remote Control Cable:3.1m
Overall dimensions: 13.11" x 4.61" x 4.84" (333mm X 117.2 mm X123mm)
Drum size: Ø 2"x3.03" (Ø 50.8 mm x 77 mm)
Rope: Ø 3/16" x60'(Ø 4.8mm x 15.3 m)
Mounting bolt pattern :4.88"x 2.99"(124mm x 76mm)
12 DC Performance specs (First layer of drum)

Line pull	Line speed	Motor	Pull by layer
lbs. (kg)	ft/min (m/min)	Current	Layer/Lbs. (kg)
0	23.0 (7.0)	21 amps	1/3500 (1588)
500 (227)	19.7 (6.0)	60 amps	2/2963 (1344)
1000 (454)	17.7 (5.4)	85 amps	3/2583 (1172)
1500 (680)	15.7 (4.8)	105 amps	4/2289 (1038)
2000 (907)	15.1 (4.6)	135 amps	5/2055 (932)
2500 (1134)	14.1 (4.3)	160 amps
3000 (1361)	12.5 (3.8)	180 amps
3500 (1588)	11.2 (3.4)	200 amps

Multiple order qty:30
G.W/N.W:11.5/9.7kg(1PC/CTN)
Shipping Carton Size:46*32*18cm(1PC/CTN)
One 20 feet container can fit in 720 PCS winches.
Standard accessories as below:
FAQ
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
We can sure within 30-35 days delivery time, but depends on the quantity !

---
