Product Description
Product Description

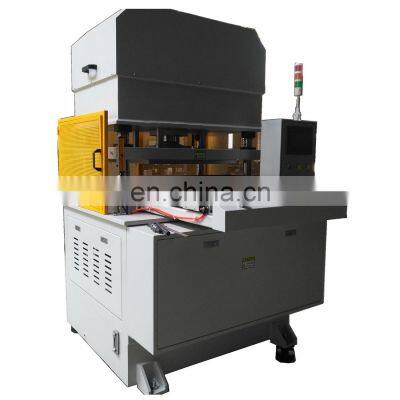

half cut die cutter machine Functional characteristics:Template launch deveice under the belt ,easy and flexible operation;Electronic positioning ,precision and accurate,and the precision and accuracy cann be controlled in 0.01 to 0.03mm ,push board back forth precision can be controlled in 0.02 to 0.05mm.There is shockproof board installed at under-chassis ,therefore ,the machine body is stable and reliable.Applies to punch electronic materials such as aluminum foil ,PET ,protective film through cutting or kiss cutting ,all kinds of precision components of stamping forming.PLC +man-machine automatic programming control ,oil system adopts integrated control ,and there is photoelectric protection. Technical Data l Operation platform area :650*600mm l Operation platform range : 50-100mm (Adjustable)l Max Pressure capacity : 40T (Adjustable) l Table board height :1000mm l Work route adjustment accuracy :±0.01m/m l Weight : 1.5T Configuration Detail l PLC 1 Set Mitsubishi l Touch Screen 1 Set Shanghai EVl Safety Photoelectric 1 Set Taiwan l Automatic Depth Adjustment Motor 1 Set Taiwan l Main Motor (7.5KW-4) 1 Set QL Taiwan l Oil Pump 1 Set Danxin Taiwan l Magnetic Valve 1 Group Danxin Taiwan l Main engine Oil Cylinder 1 Set Self-productionl Feeding Oil System Cylinder 1 Set Self-productionl Air Cooling System 1 Set Self-productionl Oil Seal 1 Set Japanl Feed Plate Slippery Course 2 Bar HIWINSHl PE Plate(10mm) 3 Piece Made in China *Special design blanking Positioning Mechanism, Accuracy ±0.01mm,Material can be through cutting , adjustment accuracy 0.01mm *Security guards , Safety magic eye Protection Device, CE Safety Labels *Template launch device under the belt , easy and flexible operation *Electronic positioning, precision and accurate, and the precision and accuracy can be controlled in 0.01 to 0.03 mm, push board back and forth precision can be controlled in 0.02 to 0.05 mm*There is shockproof board installed at under-chassis , therefore , the machine body is stable and reliable *Applies to punch electronic materials such as aluminum foil ,PET, protective film through cutting,all kinds of precision components of stamping forming *PLC + man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection *mould should can installed at up part plate
>>
