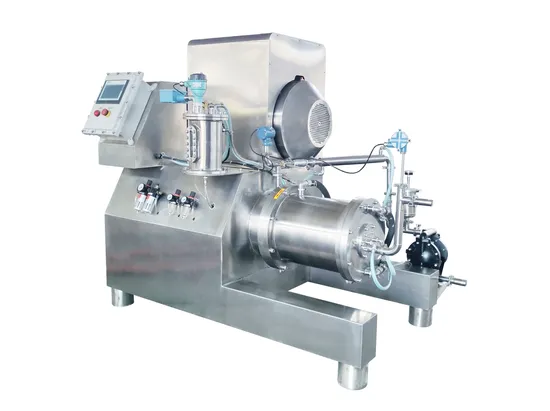

High Efficiency Nano Grinding Mill Inkjet Bead Mill Machine with Cooling System

Product Description

Horizontal Sand Mill (EDW)/High Efficiency Nano Grinding Mill Inkjet Bead Mill Machine With Cooling System
Features:
1, high abrasive resistance materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life span
2, dynamic fence booms discharge solve problems of slow discharge and grinding medium getting stuck
3, Double end-face mechanical seal can bear more than 10bar pressure
4, screw structure inside cooling jacket increase cooling area and improve cooling efficiency
5, grinding beads small to 0.2mm guarantee superfine grinding/milling
5, meet demands of continuous production
6, especially suitable for high viscosity, high solid-content, superfine grinding/milling
7, inner & outer double pins improve high wet grinding/milling efficiency
8, ex-proof (optional)
9, precise control system & fault alarming
10, kinds of feeding pumps to different processing requirements (e. G. Pneumatic diaphragm pump)
11, low power consumption
Specifications

Model	Chamber Volume (ml)	Power (kw)	Speed (rpm)	Capacity (L/H)	Dimension L*W*H (mm)	Weight (kg)
EDW-5	5	7.5	1440	200	1300*1050*450	650
EDW-15	15	18.5	1440	500	1600*1450*650	1200
EDW-20	20	22	1260	800	1600*1450*650	1350
EDW-30	30	37	1260	1200	1650*1550*750	1700
EDW-40	40	45	980	1500	1750*1650*850	2100
EDW-50	50	55	980	2000	1900*1850*850	2300
EDW-100	100	110	860	3000	2300*2150*950	380

---
