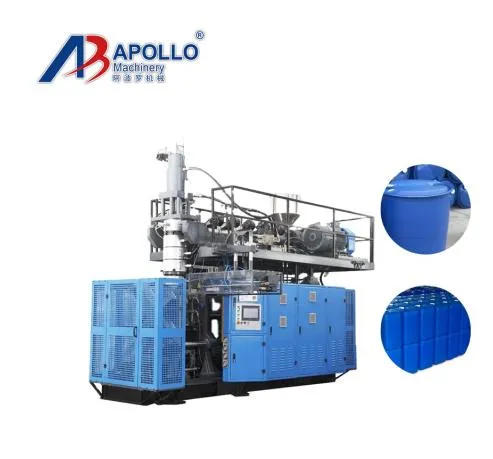

Automatic Extrusion Blow Molding Machine

Product Description

Automatic blowing machine:
ABLD120
This machine with a material storage unit is suitable to produce plastic products volume to 300L and ideal cycle can up to 300PC/H. This machine is specially designed for production of various chemical barrels, tool boxes, plastic boards and etc. Big clamping force unit ensure the mold being tightly closed even under great pressure. Programe design with multifunction guarantee you can produce various craftworks. You dont only buy one machine, but balso a professor products professor. Easy to operate and maintain, operate by one person, professor trained is not required. Low investment with high efficiency. The machine cost will be regained within 1-2 years.
For more info. About the machine, dont hesitate to contact us.
Main technical parameter:
Max. Product volume: 300 liters
Dry cycle: 300PC/h
Screw diameter: 120mm
Screw L/D ratio: 28 L/D
Screw drive power: 75 KW
Screw heating capacity: 30 KW
No. Of heating zone: 5 zones
Output of HDPE: 240 KG/H
Oil pump drive power: 45 KW
Clamping force: 800 KN
Max. Size of mold: 600-1500mm
Mold stroke: 1000X1500mm
Max. Die diameter: 520mm
Die heating power: 12 KW
Die heating segments: 5 zones
Blowing pressure: 0.8mpa
Air volume: 1.6 M³ /MIN
Cooling water pressure: 0.3mpa
Water consumption: 180 L/MIN
The component of the machine:

Electronic Parts
Name	Trader
Micro Computer Control System	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Intermediate Relay	OMRON
Contactor	Schneider from France
Electric Motor	Simens Bede
Servosystem	Delta / MEGMEET
Power supply	TAIWAN REGION MEANWELL
Transducer	ABB
Hydraulic Parts
Name	Trader
Oil pump	TAIWAN REGION HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
Air Control System
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

FAQ
1. Can the machine customized only for my products?
Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request. 2. How about the molds ?
APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional. 3. What is the business item for this project ?
a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO . b. Port of Loading: SHANGHAI, CHINA. c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight. d. Container needed: One 20GP container. 4. How is APOLLO after-sales service?
a. Inspection Before delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into operation once reach the client`s factory. b. Debugging Instruction APOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory. C. User Training APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients' factory to the users, so that they could understand the machine features and could operate the machine by themselves. 5. What is the warranty period?
a. APOLLO machine Main parts is one year warranty with a lifelong maintenance. b. Mould within one year or 5 millions warranty.

---
