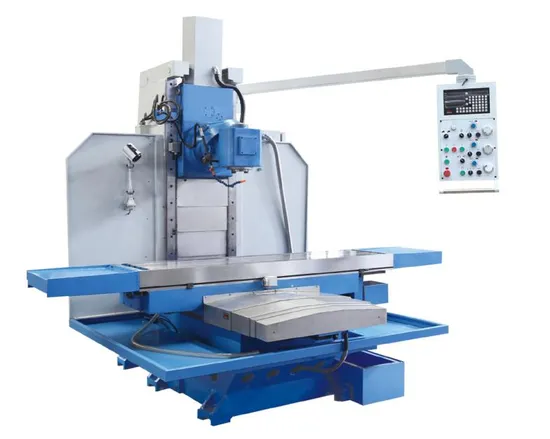

Heavy Duty Bed-Type Milling Machine X715/X716

Product Description

Bed-type Milling Machine X715/X716
Variable spindle speeds in 2 steps.
Servo motors on X, Y and Z axes.
Ballscrews on X,Y and Z axes.
Swivel head when horizontal milling.
Specification:

Model No.	X715	X716
Item No.
Specifications
Table size	2100X500 mm	2500X600 mm
Table travel-X	1500 mm	1800 mm
Table travel-Y	650 mm	700 mm
Table feed-X/Y	2.5-3000 mm/min	2.5-3000 mm/min
Table feed-Z	2.5-2500 mm/min	2.5-2500 mm/min
Table rapid feed XY/Z	6000/6000/3000 mm/min	6000/6000/3000 mm/min
T-slots	4/20/100 mm	5/20/100 mm
Spindle
Spindle hole taper	7:24 ISO 50
Spindle speed range	6-300,30-1500 r/min
Distance betwteen spindle axis and column guideway	610 mm	8-660 mm
Distance between spindle nose and table surface(V)	10-650 mm	10-700 mm
Distance between spindle axis and table surface(H)	8-660 mm	8-660 mm
Other
Main motor power	11 kw
Torque of X/Y/Z axis AC servo motor	18/23/18 N.m
Cooling pump motor power	90 w
Overall size	3220x2420x2800 mm	4380x2520x2800 mm
Net weight	7300 kg	9000 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
