Theater Conference Room Banquet Hall Music Hall Ceiling Speaker

Product Description

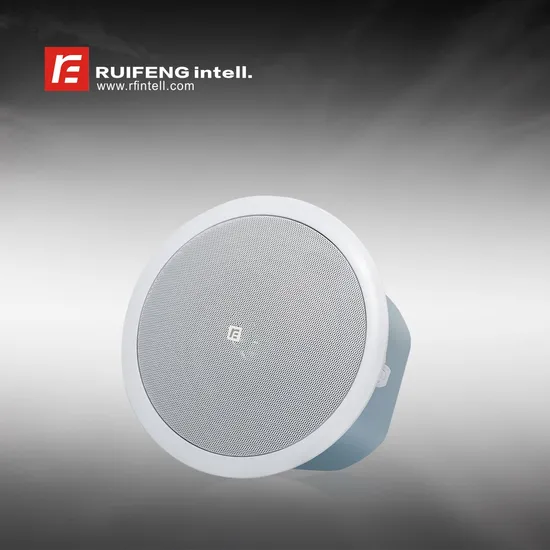

Product name:Coaxial In-Ceiling Speaker
Specification

Frequency response	126Hz-20kHz
Sensitivity(1W/1M)	90±2dB
Rated Power(AES)	60W/16Ω
Input mode	100V(60W@167Ω,30W@333Ω,15W@667Ω)
	70V(60W@167Ω,30W@333Ω,5W@667Ω,7.5W@667Ω)
LF Driver	6.5"
HF Driver	20mm horn voice coil
Diameter Out Circle	220mm
Hole Depth	194mm
Net Weight	3.6kg

Features
1.MQ series are coaxial two-way ceiling speakers ,MQ-8C uses 8"LF driver ,MQ-6C uses 6.5"LF driver ,with silk diaphragm for HF driver ,the sound is more softer and smoother;Coaxial sound source from one same point , sound reduction is more accurate and natural.
2.Voltage input and electric resistance are optional, voltage input (100V and 70V) amd electric reistance (16ohms) are available for different occasions. Installation is flexible with only hole size of the ceiling should be considered.
Application
Small to medium conference hall,Auditorium,Banquet hall,Music hall,Multi-function hall,Aux amplifying system.
