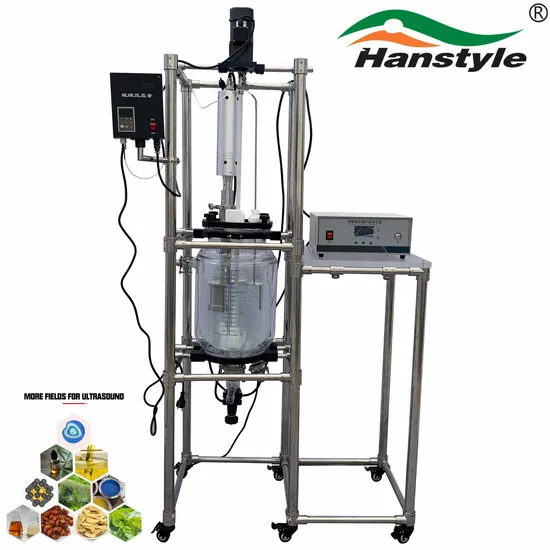

3000W High Frequency Ultrasonic Homogenizer Machine for Medical Herb Mixing Extraction

Product Description

3000W High Frequency Ultrasonic Homogenizer Machine for Medical Herb Mixing Extraction in High Effiency Save Cost
Product Description
Description: Ultrasonic homogenization is the use of ultrasonic cavitation in liquids and other physical effects to achieve homogenization. Physical action refers to the formation of an effective agitation and flow disrupting medium in the liquid, the pulverizing of the particles in the liquid, mainly the collision between the liquid, the micro phase flow and the shock wave leading to changes in the surface morphology of the particles.
Cavitation refers to the generation of holes (small bubbles) in the weaker part of the liquid under the action of ultrasonic waves. The small bubbles pulsate with the ultrasonic waves, and the holes collapse in one sound cycle. Product Specification

Model	H-UH20-1000S	H-UH20-1000	H-UH20-2000	H-UH20-3000	H-UH20-3000Z
Frequency	20KHz	20KHz	20KHz	20KHz	20KHz
Power	1000 W	1000 W	2000W	3000W	3000 W
Voltage	220V	220V	220V	220V	220V
Pressure	Normal	Normal	35 MPa	35 MPa	35 MPa
Intensity of sound	>10 W/cm²	>10 W/cm²	>40 W/cm²	>60 W/cm²	>60 W/cm²
Processing capacity(L/H)	1.0-4.0	5.0	20.0	50.0	100.0
Material of probe	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Generator	Digital type	Digital type	Digital type	Digital type	Digital type

Product Application
1.Reaction Acceleration - cavitation accelerates chemical and physical reactions.
2.Fine Particle Dispersion - e.g. nanoparticle processing
3.Disruption and Cell Lysing - will break open biological tissues and cells to extract enzymes and DNA, prepare vaccines.
4.Ultrasonically lysing cells and spores in a liquid flowing continuously or intermittently through a cylindrical reactor.
5.Homogenization - making uniform mixtures of liquids or liquid suspensions.
6.Emulsification - processing foods, pharmaceuticals, and cosmetics.
7.Dissolution - dissolving solids in solvents.
8.Degassing - removing gases from solutions without heat or vacuum. Product Advantage
1. High quality titanium alloy ultrasonic probe2. Ultrasonic horn with different size and type for selection3. Digital generator, auto-tuning, auto search frequency4. With automatic alarm protection, easy to operate5. Power adjustable from 1% to 99%6. Amplitude stability, long working hours, radiation area is increased 2.5 times than traditional tools7. Providing consulting services and custom reactor designs8. Customized sizes available for laboratory and high volume industrial applications. Product Details Display
