US$13.00
1,000-4,999 Pieces
Basic Info.
Hand Suitability
Right Hand
LED Lighting
Single Color LED
Number of Buttons
2 buttons
Scroll Wheel
With Scroll Wheel
Certification
CE, FCC, RoHS & Weee
Button Layout
Left & Right Buttons
Transport Package
Neutral Packing-Carton Box
Specification
IP68, FCC, CE, RoHS & WEEE
Trademark
KINGLEADER or customer′s preference
Origin
Shenzhen, Guangdong, China
Production Capacity
3000 PCS/Month
Product Description

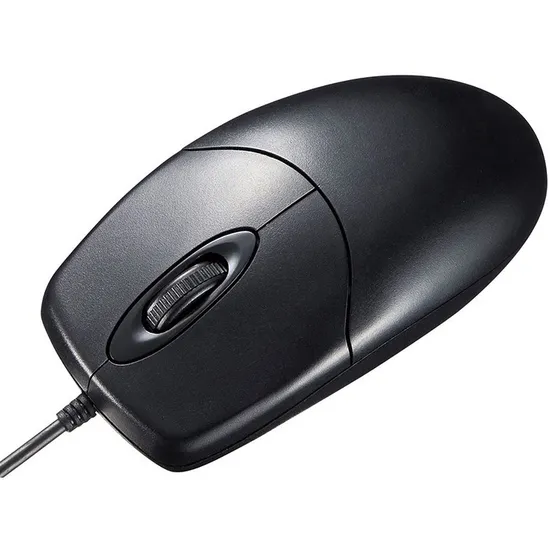

KINGLEADER's PM-200-OP,is a stylish, sleek,waterproof optical mouse made of ABS.
It has left,right click buttons and scroll wheel,its electronic components are completely sealed to be IP68 rated.
Due to its unique design and build,it is rugged, washable,virustatic and can be disinfected with common hospital-approved disinfectant, thus an ideal pointing device in industrial or medical environments.
| Items | Specifications |
| Key Features | - Optical mouse - Cable length:1.8m - Completely sealed to be IP68 compliant - USB interface - Left & right click buttons and scroll wheel -Addition of antimicrobials into raw material to prevent reproduction of harmful bacterials like Coronavirus -Used in industrial environment OR other medical environments where water-tightness is a must - Color:Black or white or custom. |
| Material | -Industrial and medical-grade ABS |
| Electrical Data | - Voltage: 5.0VDC ±5% - Electric current: 10mA - EMC compliant - Optical Trackball resolution: 1000dpi |
| Environmental Characteristics | - Operating temperature: -20º C to + 65º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Lifecycle: >10 million times per key - Key Travel: 1.50mm ±0.5mm - Actuation Force for Keys: 55 ±5g - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10/11,Linux |
| Reliability | -MTBF:>20,000 hours -MTTR:<30 minutes |
| Dimension | - 115(L) x 62(W) x 36(H) mm |
| Weight | -90g |
Company Information:
KINGLEADER is an ISO9001:2015 and ISO13485 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.
Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.
Why us?
1,ISO9001:2015 and ISO13485 certification
2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3,Reasonable price and fast response
4,Over 20 years of experience in rugged input device and touchscreen kiosk
5,OEM and ODM capability
6,Flexibility in customization and size of order
7,Trusted suppliers of many world-class famous brands in the industry
>>
