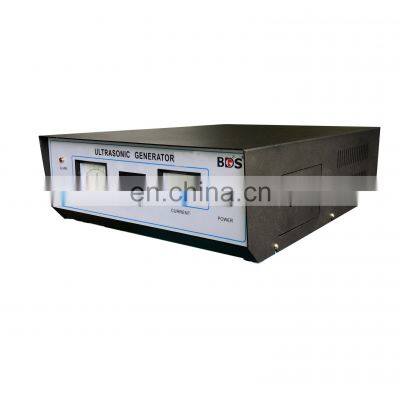

15KHz/20KHz Ultrasonic Plastic Welding Generator with Stable Power Supply (Taiwan Circuit)
This is the analog type ultrasonic generator ,also we can offer the digital type ultrasonic generator for more preicision and higher requirement welding application .
This type analog ultrasonic generator has already sucessfully used in non-woven material slitting, quilting ,non-woven bag welding and plastic welding .That's the traditional and stable with improved technology ultrasonic geneator .
For the price what you cared about , Our price is not cheapest ,but we keep quality first .
Principle of Ultrasonic Welding
Ultrasonic plastic welders operate by inducing ultrasonic frequencies in plastic components that is converted into heat between the welded plastic laminates. Frictional heat is produced so that thermoplastic parts melt and an insoluble connection between parts is forged in a very short period of time. The melting points of both working pieces is nearly equivalent which helps to form a uniform weld area. The welded area is usually as strong as the matrix material.
Inside View of Ultrasonic Generator
Specification
Main Features
1. Japan original piezoelectric ceramic transducer, the output power is more strong and life is longer
2. Special steel booster ,it's solid mount ,life is long
3. Levelling easy adjustable
4. the ultrasonics is average and stable
5. Especially suitable for large objects and waterproof precision plastic products welding.
6. Imported Aluminium 7075 material on horn ,titanium and steel horn optional
7.CE approved
8. We can according to your requirement to design the automatic machine with your production line
Application Fields:
Widely used in the automotive industry, electronic industry, medical industry, household appliances, woven apparel, office supplies, packaging industry, toy industry and so on.
Such as plastic body parts, car doors, car dashboard,lights,mirrors, sun visor, interior parts, filters, reflective material, reflective spike,bumper, cable,motorcycle plastic filter, radiator , tanks,pallet plates.
Plastic electronics: prepaid water meters, communications equipment, atheism phone, mobile phone accessories, cell phone case, battery case, charger, maintenance valve regulated lead-acid batteries, 3-inch floppy disk, U disk, SD card, CF card, USB connectors,Bluetooth.
Toys,stationery: folder, album, folding boxes,PP hollow board,pen loops,ink cartridges, toner cartridges.
Medical Daily: watches, kitchen utensils, oral liquid bottle, drip caps, mobile phone accessories, gold soft brush, daily necessities, health supplies, children's products, air mattresses, clothes hangers, tool holder, coffee pot, cover and Civil speaker grille metal surface.
Certifications
Application
Ultrasonic Plastic Welding
This ultrasonic generator could be used for different kinds plastic welding like toys ,automotive part etc
Non woven fabric ultrasonic welding and cutting
This generator used for lable slitting ,non-woven bag weldng etc. it also can reach good sealing performance
Ultrasnic liquid processing The ultrasound sonochemistry biodiesel processor system is composed of ultrasonic transducer (converter) with cover,booster, horn (sonotrode, probe) and generator.
This ultrasonic energy not only to promote or stimulate a number of chemical reactions, speed up the chemical reaction speed, even some of the chemical reaction can change the direction of some unexpected results and a miracle. This is the sonochemistry. Sonochemistry can be applied to almost all chemical reactions, such as separation and extraction, synthesis and degradation, bio-diesel production, Governance of micro-organisms, the degradation of toxic organic pollutants, deal with biodegradable, biological cells crushed, and Dispersed and cohesion, homogenizing,milling,disintegration,emulsifying,extraction and so on
Ultrasonic food cutting
Ultrasonic vibration reduces friction resistance between the blade and food, and it makes the blade cut smoothly without deformation.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
|
Size
| 70 (L) * 45 (W) * 40 (D)
|
Weight
| 30KG
|
Packaging Details
| If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
