Industrial Stainless Steel Plate Manual Top Discharge Basket Centrifuge Machine for Lithium Carbonate Powder Dewatering

Product Description

Product Description

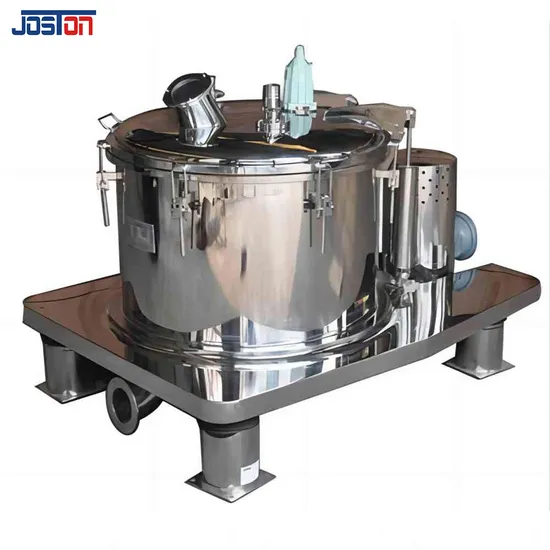

Industrial Stainless Steel Plate Manual Top Discharge Basket Centrifuge Machine For Lithium Carbonate Powder Dewatering
PS series centrifuge is a filter centrifuge operated intermittently by manual loading and unloading. This model has the advantages of simple structure, convenient operation, and strong adaptability. The filtering time can be flexibly controlled according to the material characteristics and separation requirements. The filter residue can be fully washed, and the solid particles are not easy to be damaged. It can be widely used in the chemical industry, light industry, pharmacy, food, textile, machinery, and other industries.

Type	Basket					Power (kw)	Weight (kg)	Overall size (L × W × H) (mm)
	Diameter (mm)	Volume (L)	Capacity (kg)	Speed (rpm)	G-force
PS300	300	5	10	2500	1050	1.1	180	890*600*500
PS450	450	20	25	1900	910	1.5	250	980*650*870
PS600	600	40	50	1500	756	3	800	1300*880*900
PS800	800	100	135	1200	645	5.5	1300	1800*1200*1140
PS1000	1000	150	200	1000	560	7.5	2000	2050*1500*1120
PS1200	1200	250	300	800	431	11	2500	2350*1650*1370

Detailed Photos
Drawing
1. vibration isolator 2. chassis base
3. rotor drum base 4. bearing
5. outer covering 6. upper cover of bearing
7. rotor drum tube 8. cover fastener
9. lip ring 10. cover 11. spindle nut
12. spindle 13. flame-proof lamp
14. passive wheel 15. balancer
16. electric motor 17. electric motor protection cover
18. base of electric motor 19. adjusting bolt
20. belt protection cover 21. active wheel
22. screw of ring 23. triangular belt
24. feeding pipe 25. sluicing pipe
26. discharge pipe 27. upper cover of bearing
28. bearing 29. viewing mirror 30. bearing base
Feature
1. Foundation installation exemption, simplifying installation process by ridding of the conventional 3-leg suspension structure; foundation platform is the working platform, convenient for operation and maintenance;
2. Reasonable structure design can effectively eliminate the sanitation dead corner with all the welding lines polished. The internal and external surface is all made of stainless steel and is polished and passivating treated by acid cleaning;
3. The outer cover is wide-open flip cover (optional: partly open flip cover), easy for material feeding and perfect in air-tightness; the cover is equipped with feeding inlet, sluicing pipe, explosion-proof light and viewing mirror, etc., for spot monitoring of the whole feeding, separation and laundry process.
4. The vibration isolator connected to the flat plate activates the total absorption of the energy resulting from vibration of centrifuge, incurring no shock disturbance to the foundation ground or nearby environment.
5. All the fastening pieces are made of stainless steel and sealed with silicon rubber. It can be fitted with cleansing and sprinkling system, complying with GMP standard.
Application
It is applicable to the filtrating of suspension containing granules and also be used for the dehydration of fiber substances and especially applicable to the filtrating of materials of high viscosity and fine granules as well as toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. for example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
Company Profile
Wenzhou Yinuo Machinery Co., Ltd. belongs to the Joston Industry group. The company's production base is located in the Binhai Industry Park of Wenzhou Economic and Technological Development Zone The company is specialized in the design, production, and installation of pharmaceutical machinery, dairy/beverage &food machinery, chemical industry machinery and sanitary fluid types of equipment etc. We are the leading professional machinery and equipment supplier; we produce equipment with a long history of over 15 years in China.
We can supply you with the full set solutions of the engineering, equipment, and technical services in the pharmaceutical and food industry after years of specific experience in the pharmaceutical industry and food industry, engineering research, and technical service.
Certifications
Our Clients

Q	Are you a factory or a trading company?
A	We are a manufacturer. Our company specializes in producing and manufacturing industrial machinery, including stainless steel reactors, evaporators, crystallizers, distillers, and complete production lines for various applications such as fruit juice and herbal essential oil extraction. By maintaining our own manufacturing facilities, we ensure high-quality control, competitive pricing, and the ability to customize equipment to meet our clients' specific needs.
Q	Do you do OEM and ODM services?
A	Yes, we do, we can make the equipment as per your drawing, or if you give us the technical requirements, we can help design as well.
Q	How will your company control the equipment quality?
A	We have a rigorous quality control process that includes: 1)Use of high-quality materials and components. 2)In-house testing and inspection at various stages of production. 3)Compliance with industry standards and certifications. 4)Continuous improvement and adherence to best manufacturing practices.
Q	Do you supply installation equipment overseas?
A	Yes, we offer comprehensive installation and training services to ensure the smooth operation of our equipment. Our technical team can assist with on-site installation, and we provide detailed training for your staff on equipment use and maintenance.

---
