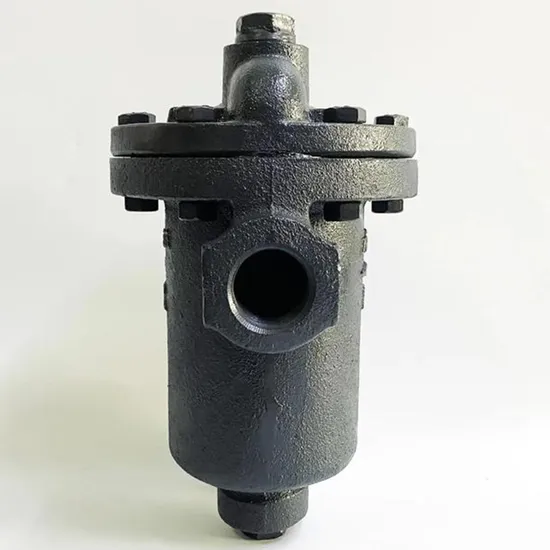

Inverted Bucket Steam Trap (STDXTH-882)

Product Description

CAST STEEL OR STAINLESS STEEL
STEAM TRAP INVERTED BUCKET DESIGN
DESIGN DESCRIPTION: Design: Factory STD; Manufacture: Factory STD; Thread and Socket: ANSI B1.20.1,B16.11,BSPT,BSP,DIN2999; Integral Strainer; Free-floating Stainless Mechanism; Auto-Discharge Orifice At The Top Of Trap; With Continuous Air Venting At Steam Temperature; Continuing Or Interrupt Drain Characteristic; Fluid Application: Vapor, Condensation; Media Minimum Different Temperature: 25ºC(77°F) Working Pressure and Temperature.: PN16: 250ºC(480°F) Maximum PN25: 350ºC(660°F) Maximum
PARTS AND MATERIAL:

PARTS NAME	MATERIALS
TOP NUT	CARBON STEEL
SEAT	STAINLESS STEEL
GASKET	GRAPHITE
LEVER	STAINLESS STEEL
DISC	STAINLESS STEEL
FLOAT BUCKET	STAINLESS STEEL
BOTTOM NUT	CARBON STEEL
SPRING RING	CARBON STEEL
BODY	CATBON STEEL
OTHER MATERIALS ARE AVAILABLE UPON REQUEST.

DIMENSIONS LIST(UNIT:MM):

DN	NPS	L	H1	H2	W
15	1/2"	130	85	90	98
20	3/4"	130	85	90	98
25	1"	130	85	90	98
Remark: Our design can be suitable for all standard (BS, DIN, ANSI, JIS standard etc.)

We hereby reserve the rights of any alternative dimension that would help to improve our valve's quality and working efficiency.

---
