High Performance Heightened Telescopic Forklift Multi-Purpose Forklift Telescopic Loader 6-Ton Load King Telehandler Machinery Manufacturer

Product Description

Product DescriptionTelehandler is a mechanical equipment used to transport goods. Due to its flexibility and versatility, it can complete the transport task in a short time and improve work efficiency. The telescopic arm design enables the forklift to operate in narrow or limited spaces, suitable for various work occasions. It can perform telescopic, rotating and lifting operations, and can be used for the handling of goods of various types and sizes. It is equipped with advanced stability and safety control systems to ensure the safety of operations in complex environments. It reduces the risk of accidents caused by falling goods or equipment failure. It can ensure the safety of operators and the surrounding environment. It can reduce the need for manual handling of goods, reduce labor costs and labor intensity.
It is used in a variety of fields such as ports, logistics, warehousing, mining, oil and gas, farms, ranches, municipalities, airports, etc. to meet the needs of different users.

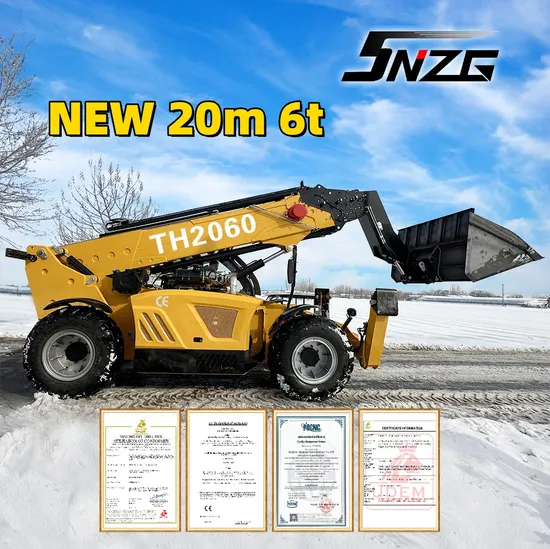

Detailed Photos

Our Advantage:

It can flexibly telescope and adjust the height to adapt to different sizes and types of containers

Can be equipped with different types of forks and attachments to meet diverse operating needs. Improved loading and unloading efficiency, reduced labor costs and time.

Using 900L type high-strength low-alloy steel, the yield strength and tensile strength are relatively high, and the yield strength is usually around 900 MPa. Used in high stress and heavy load scenarios.

Product Parameters

performance parameter
Load rating/kg	4000
Total weight/kg	12500
Max.Daylight /m-F	18
Max.horizontal extension /m	13.1
Min. turning radius /m	4.2
Max.gradeability(No load)/%	65
Frame left and right tilt Angle	±9°
Max.braking distance(No load) /m	5.5(20km/h)
Driving type	Torque converter
First speed(forward)km/h	5
Second gear speed(forward)km/h	12
Third gear speed(forward)km/h	20
Fourth gear speed(forward)km/h	30
First speed(reverse)km/h	5
Second gear speed(reverse)km/h	12
Third gear speed(reverse)km/h	20
Main arm rise time/s	11-17.5'
Main arm descent time/s	16-23.5'
Telescopic arm extension time/s	15-22.5'
Telescopic arm retraction time/s	11-18'
Principal dimension
Machine length /m-A	6.28
Machine width /m-B	2.442
Machine height /m-C	2.677
Wheel Base /m-D	3.07
Wheel track /m-E	1.96
Min.ground clearance/m	0.41
Max.outrigger width/m
Tyre	16/70-24
Engine
Engine brand	p erkins
Rated power/kw	74.5
Amount of oil filling amount
Hydraulic tank capacity/L	170
Diesel tank capacity/L	100
*Data fluctuations caused by product upgrades will be subject to no prior notice!

Certifications
Packaging & Shipping
Company ProfileShanneng Heavy Industry Machinery Manufacturing Co., Ltd. was established in 2010 and is located in Qingzhou City, Shandong Province.
The company has a factory building of more than 5,000 square meters. We're an ODM and OEM manufacturer specializing in the R&D and production of streamlined construction machinery.
Our main products include: wheel loaders, backhoe loaders, telescopic loaders, telescopic handlers, electric loaders and other special construction machinery.
The company has an independent design and R&D center, relying on more than 14 years of experience and continuous innovation to provide customers with machines with high levels of safety, comfort and high performance.
We adhere to the manufacturing concept of excellence, pay attention to details and quality, and perfectly integrate advanced technology with environmental protection, efficiency, and safety features to bring users a more excellent experience.Our Team
