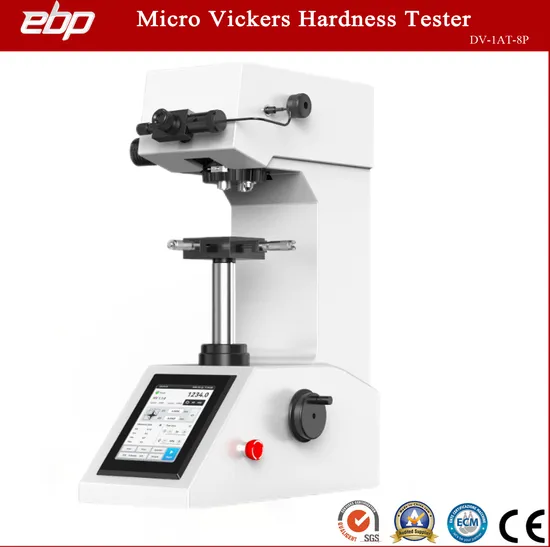

Advanced New Design Large Testing Space Touch Screen Digital Micro Vickers Hardness Tester

Product Description

Product Description Advanced New Design Large Testing Space Touch Screen Digital Micro Vickers Hardness Tester
1. One-time casting large test space machine body with car painting technology, structure more stable and appearance more decent.
2. Digital 10X eyepiece with inbuilt encoder, click the encoder machine will automatic get indentation diagonal length data D1 & D2, no need manual input data into machine, greatly improved testing accuracy and working efficiency.
3. With large touch screen digital display, directly display hardness value, dwell time, conversion hardness value, etc.
4. Menu structure interface, easy operation.
5. With HV / HK test function (if need HK test function, optional purchase Knoop diamond indenter and standard Knoop hardness blocks).
6. With built-in printer, test result can be printed out directly.
7. With RS232 communication port, machine can upgrade to semi-automatic or fully automatic type easily if needed in future.
8. Double optical path design. Reserved photo camera port, can add camera and work with hardness tester analysis and measuring software system (camera & software system for optional purchase).
Main purpose and application: Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating. Glass, chip and ceramic material. Product Parameters Specification:

Model	DV-1AT-8P
Turret	Automatic Turret
Objective	10X (measure); 40X (measure)
Eyepiece	10X digital eyepiece with built-in encoder
Total Magnification	100X (measure); 400X (measure)
Testing force	10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N)
Hardness scale	HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Conversion scale	HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW
Loading speed	≤50μm/sec
Indenter	Standard Rectangular pyramid diamond indenter (136º±0.5º)
Min. measuring unit	0.01μm
Hardness value rang	5HV-3000HV
Data display	8 inch LCD touch screen
Loading method	Automatically (Load, dwell and unload the testing force)
Duration time	1-99s (each step is 1 second)
Data output	Inbuilt printer & RS 232 port
Objective lens center and indenter center	Coincidence accuracy error < 1um (objective lens center position can be adjusted)
X-Y Testing Table	Dim.:150×150 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm
Test space	Maximum height: 180mm (vertical); Throat depth: 140mm (horizontal)
Light Source	LED Cold light source (can be continuous use for 24 hours, no heat generate ensure stable working, servicing life can reach 100,000 hours)
Machine size and N/W	560*230*720mm 50kg
Power Supply	220V ± 5%, 50/60 Hz (110V is available)
Executed Standard	GB/T4340.2, ASTM E384 & E92, EN-ISO 6507, JIS B-7734

Detailed Photos 8 Inch touch screen in menu structure, easy operate:

1 - Inbuilt printer 2 - RS232 port, software control machine need this port 3 - USB port, save data to pen-drive 4 - Inbuilt camera data line out port 5 - Power switch key

Dual optical path design, eyepiece and camera can work at same time 1 - Electronic eyepiece 2 - Built-in camera 5 megapixel camera Can work with software system easily

Standard Packing List:

Item	Q'ty	Item	Q'ty
Weights shaft	1	Weights	6
X-Y table	1	Level adjustment screw	4
Gradienter (level bubble)	1	Objective 10X, 40X	1+1
Micro Vickers hardness block	2	Eyepiece 10X	1
Dust-proof cover	1	Screw driver	2
Power cable	1	Fuse (2A)	2
Manual	1	Product Certificate	1

Professional HV-HK Hardness Measurement Software(optional)
Main Functions
1. Auto hardness measurement: With a click of a button, the software automatically measures the diagonals of the indentation, calculates the hardness value and the statistics (also support manual measurement);
2. Hardness curve: With the depths of test points by user input, the software automatically plots the hardness curve(s); User may save and load the depths in a depth template file for later testing for convenience;
3. Hardness Conversion: Converts HV to other hardness scales (HRA, HRB, HRC, HBW, HK, etc) 4. Data remember / Store function: All data in the process of measurement will be saved in the right bottom sheet. And all measurement data can be 'edit, delete, statistic, report
5.Statistics: Automatically updates the statistical values such as average, min and max, standard deviation; 6.Test report: Automatically generates WORD report with customizable template; 7. Data archiving: Measurement data and images can be saved in one file for later retrieval;
8. Knoop Scale: Can be configured for Knoop Scale measurement;
9. Other Functions: Includes the basic functions of imaging system such as image capture, camera calibration, image processing, etc. Company Profile
