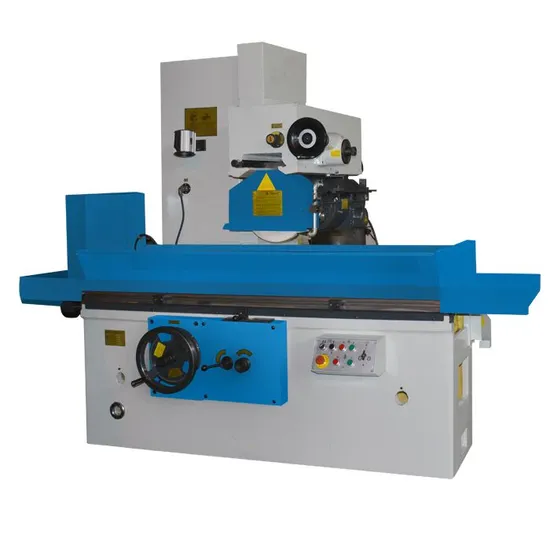

M7132 is used to produce a smooth finish on flat surfaces. It is a widely used abrasive machining process in which a spinning wheel covered in rough particles cuts chips of metallic or nonmetallic substances from a workpiece, making a face of it flat or smooth.
| Specification | M7132 |
| Worktable size(LxW) | 1000/1400/1600/2000x400mm |
| Maximum table longitudinal movment | 1100mm |
| Distance from table to wheel spindle center | 575mm |
| Max .lateral displacement of the grinding head | 450mm |
| Grinding head vertical feed per revolution | 1mm |
| Grinding head vertical feed per grid | 0.01mm |
| Fast lifting motor | Power | 0.37KW |
| Speed | 1440rpm/min |
| Wheel size( Dia. x width x bore) | φ350x40x127mm |
| Spindle speed | 1440rpm/min |
| Spindle motor | 7.5KW |
| The mechanical surface of the base of parallelism | 300/0.004mm |
| Surface roughness | Ra:0.63μm |
| N.W/ G.W | 3800/4400KG |
| Packing size | 2700x1640x2100mm |
