Semiautomatic Blin Plywood Case/Steel Pallet CNC Tapping Center with ISO 9001

US$30,000.00-32,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

BL-S800

Type

Tool Milling Machine

Object

Tool

Structure

Bed type

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

CNC

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Table Size

900*500mm

Table Max. Loading

300kg

T Slot(No./Width/Gap)

5/18/90mm

Max. Drilling Dia.(U Driller)

20mm

Max. Tapping Dia.(Standard/Optional)

M18

X/Y/Z Axes Travel

800/520/450mm

Spindle Type

Bt30

Spindle Motor

5.5/7.5kw

Spindle Speed

12000rpm

Distance From Spindle Nose to Table Face

120-570mm

Positioning Precision

0.003mm

Repeatable Positioning Precision

0.003mm

Tool Magazine

Slant Disc Type

Tool Changing Time

1.8s

Transport Package

Plywood Case/Steel Pallet

Specification

1500*1800*2100

Trademark

BLIN

Origin

China

HS Code

8457101000

Production Capacity

480 Unit/Year

Packaging & Delivery

Package Size

250.00cm * 320.00cm * 250.00cm

Package Gross Weight

250.000kg

Product Description

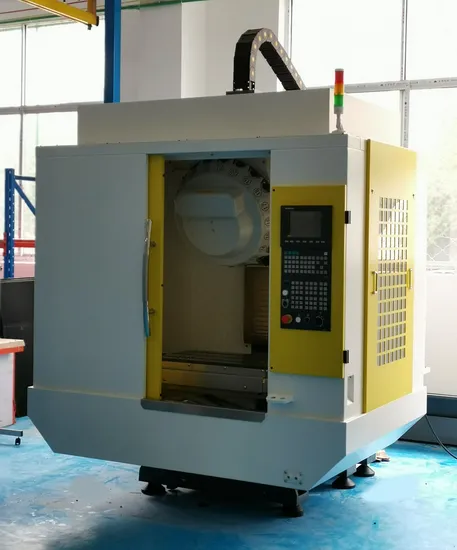

CNC vertical drilling tapping milling machining center
- Adopt HT300 class cast iron
- 3 axes adopt wide linear guideway, high rigidity
- 3 axes adopt big pre-stretched ball screw
- Adopt Slant Disc type 21T/16T tool magazine,fast tool changing
Details:

Item	Specification	Unit	BL-S600	BL-S800
Capacity	Max. drilling dia.(U driller)	mm	Φ18	Φ20
Capacity	Max. tapping dia.	mm	M16	M18
Worktable	Table size(L×W)	mm	700×420	900×500
	T slot(NO./width/distance)	mm	3/14/125	5/18/90
	Table max. loading	kg	300	500
Spindle	Spindle motor power	kw	5.5/7.5
	Spindle type	/	BT30
	Spindle max. speed	rpm	Direct-drive 12000(opt.:20000)
	Distance from spindle nose to table face	mm	135~485	120~570
Feeding axes	X/Y/Z axes travel	mm	600/400/350	800/520/450
	Cutting feed speed	mm/min	5~15000
	X/Y/Z axes rapid moving speed	m/min	48/48/48	48/48/36
	Positioning precision	mm	±0.003/300
	Repeatable positioning precision	mm	0.003
Tool magazine	Tool magazine type	/	Slant disc type
	Tools qty	/	21	16
	Tool changing time(tool to tool)	s	1.6	1.8
	Max. tool dia.(full/(no adjacent tool)	mm	Φ50/Φ120	Φ60/Φ120
Others	Overall dimension(L×W×H)	mm	1900×2100×2200	2400×1700×2100
Others	Weight	kg	3000	4500

Main parts list:

Item	Brand
Ball screw	TAIWAN-HIWIN/PMI
Linear guideway	TAIWAN-HIWIN/PMI
Ball screw bearing	SWEDEN SKF/GERMAN FAG
Spindle	TAIWAN
Tool magazine	TAIWAN-SANJET
Main electric parts	FRANCE-SCHNEIDER
Pneumatic parts	TAIWAN-AIRTAC
Lubrication pump	JAPAN-HERG

Standard configuration: - SYNTEC 22MA CNC controller
Optional configuration: - FANUC 0I MF CNC controller
- 4th axes
