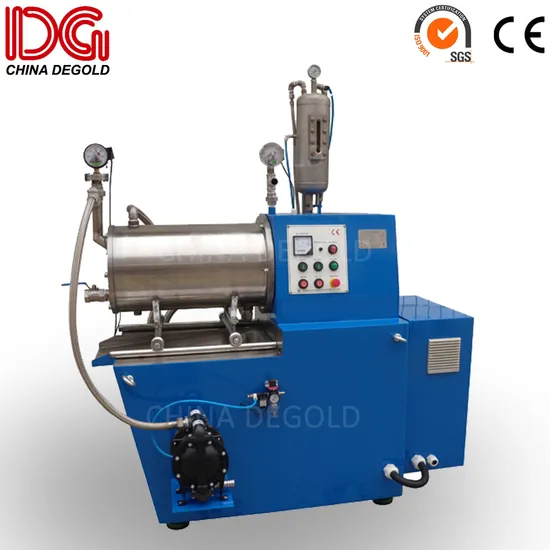

Pigment 30L/50L Nano Sand Mill for Inks

Product Description

DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size. We produce following five series.

"Series ZM" horizontal bead mills:	grinding discs type bead mills
"Series ZM-X" horizontal bead mills:
"Series ZM-E" horizontal bead mills:
"Series ZM-K" horizontal bead mills:	pin type bead mills
"Series ZM-T" horizontal bead mills:	turbo type bead mills

Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.

Different materials inside the horizontal bead mills can be choosen, such as SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic etc.
Applications:
Technical Data:
ZM Series:

		ZM0.3	ZM1.4	ZM5	ZM15	ZM20	ZM30	ZM50
Effective grinding chamber volume (L)		0.3	1.4	5	15	20	30	50
Main motor power (kW)		0.75	2.2	7.5	15	18.5	22	30
Grinding shaft rotary speed (r/min)		0~1500	0~2800	1650	1200	1200	1120	900
Adjustable range of materials flow (L/min)			0~1	0~2	0~2	0~10	0~10	0~60
Max. cooling water consumption (t/h)			0.5	1	1	2	2	2.5
Estimated productivity (kg/h)			2~20	12~120	30~300	40~400	50~600	100~1000
Dimension (mm)	L	640	650	1250	1560	1600	1860	2100
	W	410	570	900	1050	1050	1100	1150
	H	485	885	1250	1550	1550	1550	1650
Net weight (kg)		50	500	700	800	980	1100	1300
Note: Technical data are different if there are some customized constructions.

ZM-X Series:

Model		ZM5-X	ZM15-X	ZM20-X	ZM30-X	ZM50-X	ZM100-X	ZM200-X
Effective grinding chamber volume (L)		5	15	20	30	50	100	200
Main motor power (kW)		11	18.5	22	30	37/45	45/55	55/75
Grinding shaft rotary speed (r/min)		1650	1200	1200	1120	900	700	550
Adjustable range of materials flow (L/min)		0~2	0~2	0~10	0~10	0~60	0~60	0~150
Max. cooling water consumption (t/h)		1	1	2	2	2.5	2.5	3~4
Estimated productivity (kg/h)		15~150	40~400	50~500	60~800	150~1500	150~1500	200~2000
Dimension (mm)	Length	1250	1560	1670	1760	1970	2175	2150
	Width	900	1050	1050	1050	1150	1200	1200
	Height	1250	1550	1565	1585	1650	1880	2150
Net weight (kg)		700	800	1000	1150	1350	2000	2500
Note: Technical data are different if there are some customized constructions.

ZM-E Series:

Type	ZM20-E	ZM50-E	ZM100-E	ZM200-E	ZM300-E	ZM500-E	ZM1000-E
Grinding chamber volume (l)	20	50	100	200	300	500	1000
Batch size (l)	100-500	200-1000	500-2500	1000-10000	>2000
Drive (kW)	18.5/22	37/45	55/75	75/90	90/110	160/200	315
Grinding shaft rotary speed (r/min)	1200	800	650	500	460	350	340
Length (mm)	1670	1970	2750	2950	3450	3350	6650
Width (mm)	1050	1150	1200	1200	1300	1500	1450
Height (mm)	1565	2000	2200	2200	2250	2700	2850
Net weight (kg)	750	1500	3500	3700	4700	8000	12000
Note: Technical data are different if there are some customized constructions.

ZM-K Series:

Type	ZM10-K	ZM25-K	ZM60-K	ZM150-K
Grinding chamber volume (l)	10	25	60	150
Batch size (l)	500	2000	>2000	>4000
Drive (kW)	18.5-22	37-45	75-90	160-250
Length (mm)	1670	2050	2500	3000
Extended length (mm)	2100	2700	3280	4100
Width (mm)	900	1000	1195	1220
Height (mm)	1500	1600	1900	2500
Weight (kg)	1250	2250	3600	6700
Note: Technical data are different if there are some customized constructions.

ZM-T Series:

Type	ZM8-T	ZM18-T	ZM25-T	ZM60-T
Grinding chamber volume (l)	8	18	25	60
Batch size (l)	100-1500	300-2500	400-3000	500-6000
Drive (kW)	18.5-22	37-45	45-55	75-90
Length (mm)	1400	1800	1900	2300
Width (mm)	800	1050	1050	1250
Height (mm)	1700	1900	1900	2150
Weight (kg)	900	1800	2000	3600
Note: Technical data are different if there are some customized constructions.

Production Line:
Exhibition:

---
