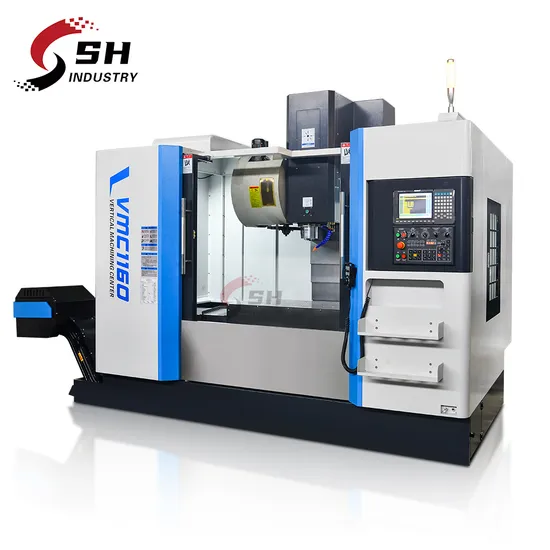

CNC Machine Tool Vmc1160 Vertical Machining Center High-Precision Vmc 3-Axis Lathe CNC Milling Machine

Product Description

Vmc1160 3 Axis CNC Milling Machine Vertical Machining Center
Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Auto lubrication system
Vertical machining center use:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
Main technical specifications:

Specifications	Units	VMC1160
Table size	mm	1200×600
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Max. worktable load	kg	1000
T slot(number-width-pitch)		5-18x100
Max. spindle speed	kg	8000rpm
Spindle taper	mm	BT40
Main motor power	kw	11
X/Y/Z rapid traverse speed	m/min	24/24/24 (Optional:48/48/36 )
Cutting feed speed	mm/min	1-10000
Guide rail type		Linear rail
Distance from spindle center to column surface	mm	600
Distance from spindle nose to table surface	mm	120-720
Positioning accuracy X/Y/Z	mm	0.0075
Repeated positioning accuracyX/Y/Z	mm	0.005
Tools magazine		Arm 24
Max. tool diameter	mm	φ78( Adjacent)/ φ120(Apart)
Max.tool weight	kg	8
Max.tool length	mm	300
Machine weight	kg	7300
Overall dimension	mm	2550*3200*2650

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
