New Horizontal Drilling Standard Wood Packing Milling and Tapping Machine

US$3,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

AC-Wsk-8z

Controlling Mode

CNC

Number of Shaft

Hole Diameter

<50mm

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Functions

Drilling, Milling, Tapping

Maximum Drilling Capability

Dia 50mm

Maximum Tapping Capability

M45(Able to Milling Thread)

Spindle Quantity

Position/Repeat Precision

+/-0.01mm

Spindle Motor

7.5kw

X Axis Work Stroke

520mm (Spindle Feed Stroke)

Y Axis Work Stroke

190mm(with Brake Function)

Z Axis Work Stroke

280mm (Main Spindle Travel)

Power Supply

380V, 50Hz

Transport Package

Standard Wood Packing

Specification

Trademark

AC-WSK-5z

Origin

Nanan, Fujian

HS Code

84573000

Production Capacity

200 Sets

Product Description

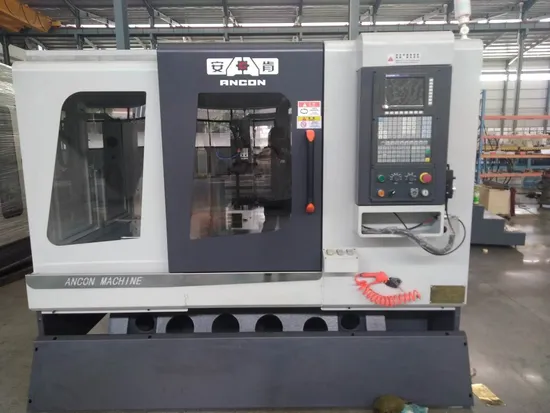

Horizontal CNC Drilling Milling and Tapping Machine AC-Wsk-8z
WIDELY USED FOR MASS PRODUCTION OF CARTRIDGE HOLE MACHINING
ADVANTAGES: 1) Over 20 years experience in brass casting and machining equipment. 2) First and most accepted China brand. 3) Most competitive price and quality. 4) Short delivery time. 5) Instant aftersale service on line. 6) Import and Export License. 7) OEM. APPLICATION: Widely used in Brass, Copper, Alumium alloy machining(Drilling and Tapping) for Plumbling Hardware, Faucets, Valves, Car Spares, etc..
Especially for the cartridge machining. SALE & AFTER-SALE SERVICE: Warranty 1 year free. Lifetime maintenance. Afersale service: instant and fluenct English service, by on line chatting, or by phone, or by local agent repair(such as India, Iyan, etc.), or other way by negotiation.
chinadelin.en.made-in-china.com MAIN TECH. SPEC:

Name		Horizontal CNC 8 spindles drilling, milling and tapping machine
NO	Main configuration			Main configuration	Unit	Brand	Remark
NO	Item		Name	Main configuration	Unit	Brand	Remark
01	X spindle		X spindle servo motor	1.5KW	1	chinese	Max stroke 550mm, max speed 20m/min
			X spindle ball screw rod	R3210	1	Hiwin or PMI
			X spindle line rail	RGH30HA	2	Hiwin or PMI
02	Y spindle		Y spindle servo motor	Power 1.5KW	1	chinese	Max stroke 300mm, max speed 20m/min
			Y spindle ball screw rod	R3210	1	Hiwin or PMI
			Y spindle line rail	RGH30HA	2	Hiwin or PMI
03	Z spindle		Z spindle Servo Motor with Brake	Power 2KW	1	chinese	Max stroke 300mm, max speed 20m/min
			Z spindle ball screw rod	R3210	1	Hiwin or PMI
			Z spindle line rail	RGH35 HA	2	Hiwin or PMI
04	enclosure			Main spindle power 5.5KW main spindle speed 10-3500r/min quantity:8 sleeve stroke:80mm	1	ancon
