Product Details
Product Description
Product Description
During the processing and production process, there are often some problems with the gate sleeve. These problems include excessive feed rate that does not meet the drawing tolerance requirements, quality issues caused by non human factors (such as grinding wheel grinding particles breaking or falling off to form rough marks between the grinding wheel and the workpiece), and burning problems caused by the gate sleeve during mold production. In order to repair these problems, it is usually necessary to repair the sprue sleeve by fine grinding combined with the characteristics of metal Thermal expansion. Dongju CBN gate grinding head can repair the surface of the inner hole of the gate sleeve with a single needle, without affecting the overall appearance size, reducing unnecessary processing volume. The temperature and feed rate during high-speed grinding are controllable, so the gate sleeve only uses mechanical grinding to shrink the inner hole size for repair processing, which will not affect the performance of the original material after heat treatment. This rapid processing method is suitable for the repair and processing of various mold gate sleeves, while ensuring the quality and performance of the gate sleeves.
Brand: Dongju

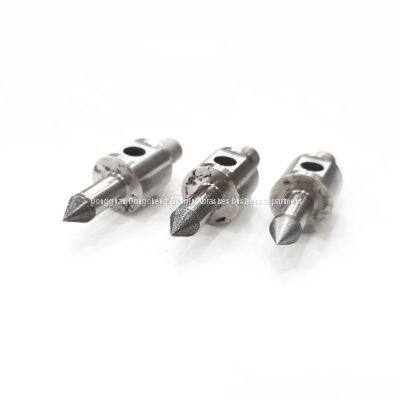

Name: Gate sleeve grinding head
Model: Electroplating binder
Material: S136 mold steel
Category: Cone grinding head
Customization: Yes
Imported or not: No
Abrasive: cubic Boron nitride
Abrasive particles: 300 #/400 #/600#
Grinding head diameter: 7mm
Shank diameter: 8mm
Grinding head length: 8mm
Taper: 60 °
Length: 49mm
Specification: 7D * 8T * 49L * M8 * 60V
Weight: 400g
Function and purpose: Fine trimming, processing and grinding of mold gate sleeve
Origin: China
>>
