Welcome to visit

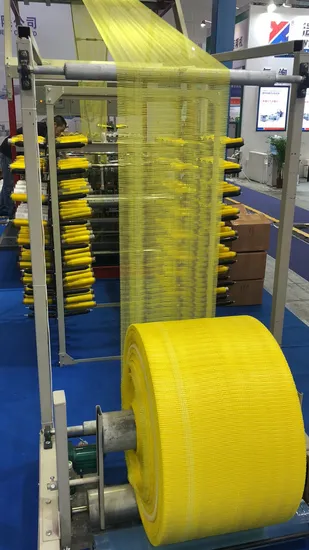

Potato Mesh Bag Loom

US$5,800.00 1 Set (MOQ)

Basic Info.

Model NO.
S-WYJ-4/750
Computerized
Computerized
Precision
High Precision
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
All Life
Weave Width
170-850mm
Suitable
Potato Mesh Bag, Totamo Mesh Bag, Vegetable Bag
Bobbin Size
Based on Clients Request
Specification
CE
Trademark
Tianfeng
Origin
China
HS Code
84462190
Production Capacity
100sets/Month

Product Description

Product Description
Application:
To weave PP/HDPE fabric for woven bag, cement bag, rice bag, flour bag, pet food bag, animal food bag, fertilizer bag, chemical bag, etc.
Advantages:
Suitable for all kinds of quality tape
Good weaving quality
Low energy consumption
Low maintenance cost
Operator friendly
Best economic benefit

Product Parameters
Model S-YZJ-750/4S
Number of shuttles 4 pcs
Working width, double-flat 160- 750mm
Rotational speed * 140 - 180r.p.m.
Weft insertion rate * 560 - 720p.p.m.
Weft density 23- 55wefts/100mm
Max. number of warp 512PCS
Inner dia. of warp/weft core 35mm
Length of warp/weft core 218mm
Max. dia. of warp bobbin 140mm
Max. dia. of weft bobbin 98mm
Length of warp/weft bobbin 200mm
Weight 1700kg
Driving main motor and control
Warp in-feed motor and control
Fabric haul-off and control
Winder motor and control
Length of winding core
Max. dia. of winding roll
Over dimensions (L×W×H)
2.2kw Controlled by Inverter and PLC
Permanent magnet motor Controlled by Inverter and PLC:
Permanent magnet motor Controlled by Inverter and PLC
Permanent magnet motor Controlled by Inverter and PLC
950mm
Ø1200mm
8500×2300×2730mm


Detailed Photos

Company Profile
Since 1998, Zhejiang Tianfeng Plastic Machinery Co., Ltd. has been a professional manufacturer for designing, manufacturing and developing of the production machinery of plastic flexible weaving package products in China. The company has passed ISO9001:2008 international quality management system certification, is member of both China Plastics Processing Industry Association (CPPIA) and China Plastics Machinery Industry Association (CPMIA), the High & New Technological Enterprise (H.N.T.E.) of State.
The company covers a total area of over 65,000 m², including over 50,000 m² of workshops and office buildings.
Tianfeng Machinery supply not only independent machine with good quality and price, but also the whole production line solution for the whole plant with our good technology and rich experience. We are committed to provide our every customer the best reasonable and optimal production line solution to help them get best ROI (return on investment).
Our main products include: high-speed, middle-speed and economic type plastic tape extrusion production line, tape winder, circular loom, plastic extrusion coating machine, laminating machine, flexo printing machine, PP block bottom valve bag making machine (hot air welding), woven bag automatic cutting and sewing machine, plastic monofilament extrusion line, plastic rope making machine and other auxiliary machines. All of these products have successfully covered in 5 continents and more than 60 countries and regions in the globe, such as following:
Asia: China, Mongolia, North Korea, Kazakhstan, Uzbekistan, Turkmenistan, Tajikistan, Kyrgyzstan, Georgia, Azerbaijan, Indonesia, Malaysia, Vietnam, Thailand, Philippines, Myanmar, Cambodia, Laos, Bangladesh, India, Pakistan, Sri Lanka, Iran, Turkey, Iraq, Syria, Yemen, Jordan, Israe, Lebanon, Afghanistan, etc.
Africa: Egypt, Lybia, Tunisia, Algeria, Morocco, Ethiopia, Kenya, Tanzania, Uganda, Ghana, Nigeria, Chad, Cameroon, South Africa, Zambia, Angola, Zimbabwe, etc.
Europe: Russia, White Russia, Italy, Ukraine, Serbia, etc.
North America: U.S.A., Canada;
South America: Brazil, Mexico, Peru, Venezuela, Cuba, Uruguay, Paraguay, Ecuador, etc.
All along, we think that one important factor for our advances is from supporting each other between us and our every customer. We are willing to work together with our customers to develop, grow and succeed.
