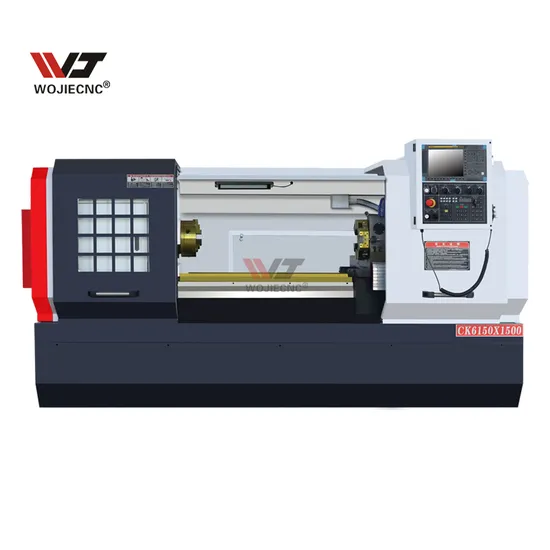

Horizontal Flat Bed CNC Lathe for Sale Ck6150 Torno CNC Turning Lathe Machine

Product Description

Product Description
Product Parameters

SPECIFICATIONS	Units	CK6140	CK6150	CK6160
Swing over bed	mm	400	500	600
Maximum swing over cross slide	mm	210	260	300
Distance between centers	mm	1000/1500/2000
Spindle bore	mm	52mm(opt 8)	52mm(opt 8)	52mm(opt 8)
Spindle speed range	rpm	L:100-500H:500-1800
Tailstock travel	mm	130	130	130
Tailstock quill taper	-	MT4	MT5	MT5
Tailstock quill diameter	mm	65	65	65
X travel	mm	230	280	320
Z travel	mm	1000/1500/2000
X/Z rapid feed speed	m/min	6/8	6/8	6/8
Main spindle motor	kw	4	5.5	0.125
Weight for 1000	kg	1800	1900	2000
Weight for 1500	kg	1900	2000	2100
Weight for 2000	kg	2000	2100	2200
Dimension for 1000	mm	2500*1650*1700	2500*1700*1750	2500*1750*1800
Dimension for 1500	mm	3000*1650*1700	3000*1700*1750	3000*1750*1800
Dimension for 2000	mm	3500*1650*1700	3500*1700*1750	3500*1750*1800

Detailed Photos

3-jaw Chuck	4-station tool post
Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin	Manual tailstock
2-axis Box way	Lubrication system The centralized lubrication system can be used in a timely,quantitative,convenient is conductive to increasing the service life of the machine tool.

Optional accessory

Auto chip conveyor and chip bucket	8-station turret	Oil Mist Collection
SERVO automatic feeder	Electric cabinet air conditioner	Oil-water separation (Oil skimmer)

Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ

1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
