Sunflower Tahini Almond Nut Processing Machines Peanut Butter Production Line Colloid Milling for Sell

Product Description

Nut Butter Processing Machine Line
Product Description
*This production line can be applied to peanut butter,sesame butter, almond butter and so on.
*Support design a reasonable production line according to your production capacity and heating source.
*Support semi-automatical or full automatic.

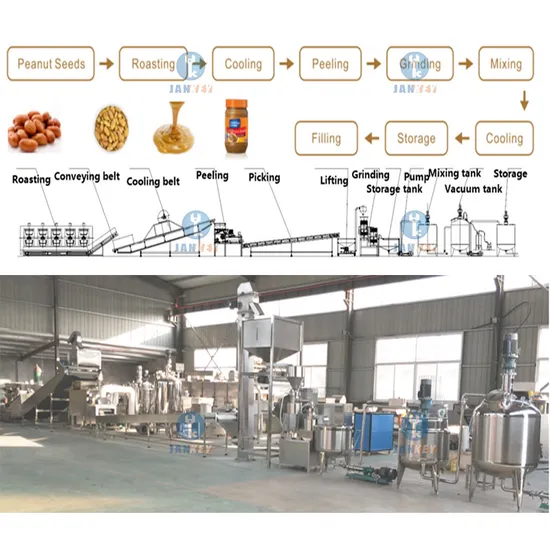

Porcessing:
Product Parameters
Please check the 200kg/h for you reference.
Also can supply the custom machine line capacity:100kg/h,300kg/h,500kg/h,800kg/h, 1000kg/h etc.

200kg/h Peanut Butter Making Line
No.	Machines	Power(kw)	Dimension	Quantity
1	Roaster	47.2kw	2900*2100*1750m	1
2	Conveyor Belt	0.75kw	3800*700*1500mm	1
3	Cooling Belt	4.5kw	6000*1250*1600mm	1
4	Peeler	0.74kw	1100*350*1200mm	1
5	Conveyor Belt	0.75kw	6000*700*1000mm	1
6	Elevator	0.75kw	1000*500*3400mm	1
7	Feeding Machine	0.55kw	1100*1100*500mm	1
8	Butter Machine	11*2kw	900*350*900mm	2
9	Table		1000*1000*500mm	1
10	Tank		200L	1
11	Pump	1.5kw	1000*300*350mm	1
12	Mix Tank	2.2kw	300L	1
13	Vacuum Tank	2.2+1.5kw	300L	1
14	Pump	1.5kw	1000*300*350mm	1

Detailed Photos
Roasting: batch roaster's working temperature is 200-210 Cº within 20-30minutes. The batch roaster will bake some delicious smells.
Cooling: Peanut will be send cooling belt to cool.Peeling: put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted and un-blanched peanut kernel is picked up by manual or mechanical. (It is matched with manual type conveyor in the quotation).
Grinding: Using steel grinder to make the first grinding; Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7um; temperature of grinding is controlled below 68C.
Cooling Mixing: make the butter more homogeneous and the butter through second grinding should be cooled immediately. The temperature should go down 45C.Buffer Tank: Short time storage and take out the air from peanut butter.Storage tank: settling down in the storage tank till the temperature drop to air temperature.Filling machine: Automatic filling machine, the finished peanut butter is packed into 200g/500g/1000g etc.
Packaging & Shipping
Packaged by export wooden packaging for LCL shipping.
FAQ
1,Do this machine customize the voltage and motor?
-Yes, we can customize rely on client's factory need ,Also supply the Siemens motor etc.
2,Do this machine has the cooling system?
-Yes, it has cold water supply and drain ,please add the pipe connect it to cool down the stator and rotor.
3,What's the machine spare parts?
-Sator and Rotor,Sealing strip, V-belt.
4,What is the temperature of the discharge?
-The discharge temperature is approximately 70-80 degrees Celsius. If continuous production is required, cooling devices need to be added to facilitate packaging on the next side.
After Sales Service
- Set up: After our equipment is completed, we will connect the wires, then carry out the machine test, and provide you with a video of the machine test. After confirming that the machine is running well, The whole machine and the whole cabinet are shipped, and after arriving at your factory, The machine can work directly with connect electrical wire.
- Set up & Further repair: We also will sent the Manual Instructions to you - The manual instruction include : IV.Installation and debugging of equipment & V.Use And Operation & VI.Analysis and elimination of common faults & VII.Repair and maintenance of equipment etc.
- Set up & Further repair: We also can supply the goolge meeting/zoom meeting or whatsapp meeting, i will invited our product engineer take part in, If you meet any questions , you can calling me.
- Set up & Further repair: Regarding after-sales, we guarantee that the time from when you ask a question to when we give a solution to the answer is within 24 hours.
Company Profile
The company specializes in various types of Food deep-processing machinery, Nut sauce processing full series of complete sets of machinery development and manufacturing, and has a strong scientific research and manufacturing capacity, and a wealth of, chili sauce deep-processing practical experience many years.
R&D Advantage
With more than 30 R&D technicians, the company's annual R&D expenditure accounts for 4%, and its R&D technology ranks the top in China.
Manufacturing Advantage
The company has highly flexible manufacturing and processing capabilities, with more than 50 sets of machining equipment, with the ability of unloading, molding, machining, welding, painting, installation and debugging.
Service Advantage
The company provides professional services covering consulting, equipment selection, drawing design, equipment manufacturing and installation, equipment maintenance.

---
