| US$15,000.00 | 1 Set (MOQ) |

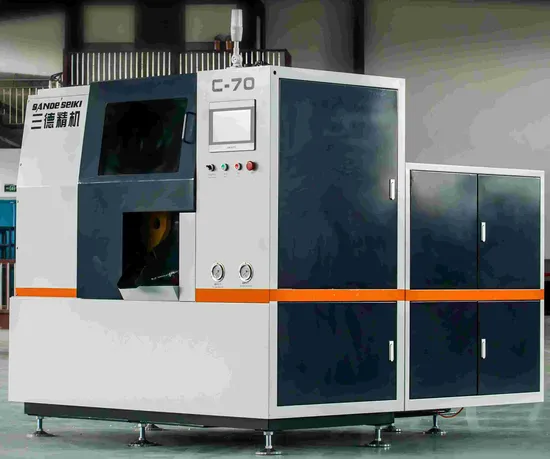

| Economic circular saw | C70 technical data |
| Cutting capacity | |
| bar | 10-75mm |
| Square steel | 10-55mm |
| tube | ○ 10-75mm |
| Square pipe | 10-55mm |
| Head spindle | |
| Use TCT super hard circular saw blade | φ285x32x2 |
| Pin hole and aperture | 4x φ 11xPCD63x φ32 mm |
| Spindle motor | 7.5 (4P) kw |
| Spindle speed | 55-145 rpm |
| Cut off feed mode | AC servo motor + ball screw | roller linear guide rail |
| Main clamp mode | hydraulic | horizontal clamping and upper clamping each one |
| Saw blade debris removal device | Passive round wire brush |
| Gear gap compensation device | built-in anti-backlash mechanism |
| Feed clamp | |
| Feeding drive mode | AC servo motor + ball screw |
| Feeding clamp mode | hydraulic | horizontal clamping |
| Material front end removal length | 5-200 mm |
| Material back end removal length | 70+ α ( αis not enough to cut a workpiece length )mm |
| Single feed length | 850mm |
| Automatic feeding device | |
| The allowable material length | 3000~6000(optional customized material rack )mm |
| Width of the storage area | 630mm |
| Feeding mode | Pre-discharge | hydraulic lifting |
| Hydraulic device | |
| Hydraulic pump type | variable vane pump |
| Hydraulic drive motor | 2.25 kw |
| The rated pressure of the hydraulic system | 5.5 Mpa |
| Hydraulic oil capacity | 90 L |
| Sawing accuracy | |
| Cut-off length error(mm) | ±0.15 |
| Cutting surface error(mm) | ≤0.05/φ50 |
| Cut off surface roughness | Ra1.6~3.2 |
| Cut face perpendicularity | ⊥<=0.05/100mm |
| Size and weight | |
| Weight (machine + rack) | 3130 |
| Size(LXW) | 7100x2100 |
| Other standard equipment | |
| saw blade offset shockproof device | Tungsten carbide parallel block |
| Separator | pneumatic | reciprocating |
| lubrication system | thin oil lubrication |
| Tool micro-lubrication system MQL | quasi-dry intermittent oil feeding |
| Chip removal system | screw type |
| Work light | LED| water and dust resistant |
| Optional device | |
| Centrifugal oil mist recovery machine | multi-stage filtration, energy saving and environmental protection |
| Cluster feeding device | bundle feeding, long material cutting preferred |
| Hydraulic wire brush | active removal of debris |
| Long material undertaking device (discharge device) | a variety of flexible options, can be equipped with robot discharge material |
| Spare parts | Brand |
| Main motor | Dedong |
| Main motor inverter | Haishang |
| Reducer box bearing | TWB, C&U |
| Ball screw | feishu |
| Linear guide | HTPM |
| Servo motor and amplifier(feed) | DIVISION |
| PLC | Jun chuang |
| Touch screen | Jun chuang |
| Low pressure vital parts | Chint |
| Photoelectric switch | DADIguangmu |
| Oil pump | senyou |
| Oil pump motor | senyou |
| Solenoid valve | Nothman |
| Thin oil lubricates | Jinhe |
| Grease lubricates | Jinhe |
| Oil gas spray | Jinhe |
| item | Φ70 |
| Recommended speed | 130rpm/min |
| Recommended feed per tooth | 0.06-0.12mm/z |
| Actual feed speed | 7.8-15.6mm/s |
Single cutting cycle speed | 7.5-12s/pc (including clamping, feeding, sawing and other actions) |
| Production per shift(8H) | 2400-3840 pcs/shift |
| Saw blade type | Ф285*32*2*T60 |
