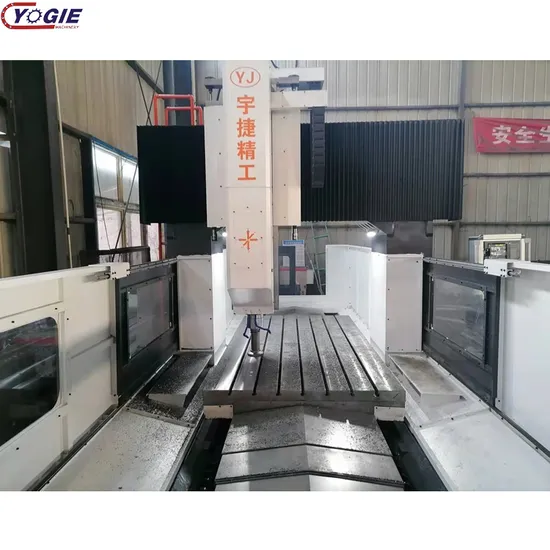

Frt-6040b High Rigidity Heavy Duty 3 Axis Gantry Machining Center

Product Description

Product Description
Main Structure
The FRT-6040B series machine tools are mobile worktable structures, mainly composed of worktable, bed, sliding seat, column crossbeam,ram,hydraulic system lubrication system,pneumatic system, cooling filtration system, chip removal device, fixed operatiorpanel, and electronic control system.
Ram & Spindle
lt adopts the best rectangular ratio copper-containing casting structure, cooperates with Japan Hamada gear and diameter 100mm ball bearing, and has high-precision and silent processing; the long sleeve type spindle (300mm) directly goes into the interior of the cavity for intensive repair.
Door Beam
The "door" type integrated casting design, distribution of well-word grid ribs, high-quality Mehanna standard cast iron, two electric furnace aging and two vibration aging, to ensure long-term non-deformation of seismic resistance; increase the step rail span than the peers to ensure processing stability.
Base
The finite element analysis design of the overall ship structure.the double wall and ribs integrated into one, to ensure the most stable heavy-duty seismic foundation. Adopting more specifications of the screw and line rail than the peer to ensure the high rigidity of the machine and the accuracy of the whole machine; the integrated built-in oil-water separation and chip evacuation structure ensures the machine is environmentally friendly and saves money!
Features
Optional full-closed, three-coordinate detection error within 0.01mm
Gear head upgrade high-precision 6000 rpm, capable of rough and fine machining
lmprove manufacturing accuracy, right angle error 0.01mm Product Parameters

Item			Main Parameter
CNC control			SIEMENS 828Dsl
Table	Worktable Size	mm	3000×6000
	Worktable Load Capacity	kg	35t
	T-slot Specifications (width/spacing/number)		34×150×15
	Effective width of gantry	mm	4000
Travel	X axis	mm	6000
	Y axis	mm	4200
	Z axis	mm	1250
Headstock	Spindle Drive Mode		Synchronous tooth belt
	Main Motor Power	KW	37
	Spindle Speed	rpm	1-6000
	Spindle taper and specification		IS07:24NO50
	Pull stud		P50T-2-MAS403
	Ram Section	mm	600×600
	Spindle Torque(Max)	Nm	1890
	Spindle nose to table surface	mm	100-1700
Ballscrew	Ballscrew(X axis)	mm	100*20
	Ballscrew(Y axis)	mm	80*16
	Ballscrew(Z axis)	mm	63*12
Guide Rail	Guide Rail(X axis)		Four 55 specification heavy duty roller type linear motion rolling guide on the X-axis
	Guide Rail(Y axis)		Three 55 specification heavy duty roller type linear motion rolling guide on the Y-axis
	Guide Rail(Z axis)		Rectangle hard rail
FEED	Milling speed X,Y,Z, Axis	m/min	6/6/6
	Rapid X,Y,Z,W Axis	m/min	10/10/10/2
	Servo motor power for X,Y,Z,W	kw	4X9.75/ 7.17/ 7.75
	Servo motor torque×reduction gear ratio for X,Y,Z,W	Nm	50×70/48×5/48×5
	Servo motor speed for X,Y,Z,W	rpm	3000/3000/3000
Tool magazine(Optional)	magazine capacity	T	[40,60]
	Spindle nose		BT50
	Pull stud		P50T-2-MAS403
	Maximum diameter(full knife/empty)	mm	Φ125/Φ250
	maximum length	mm	400
	maximum weight	kg	25
Positioning accuracy(Standards:GB/T19362.1-2003)	X axis	mm	0.01
	Y axis	mm	0.01
	Z axis	mm	0.01
Repeated positioning accuracy(Standards:GB/T19362.1-2003)	X axis	mm	0.015
	Y axis	mm	0.015
	Z axis	mm	0.01
Distance between spindle and cloumn guide		mm	450
Power supply requirements			Three-phase 380V
Capacitance		KVA	135
Machine weight		T	85
Machine dimension		mm	16500×5500×3500

Company Profile
1.professional r&d team with 20 years of experience provide the over all solution for machine and processing.
2.Exporting to more than 50 countries worldwide
3.We own ISO certificate and SGS certification to prove our quality.
Henan Front Intelligent Equipment Co., LTD .
Henan FRT Group (Henan Front Intelligent Equipment Co.,Ltd.),its subsidiaries Luoyang Yujie Industry and Trade Co.,Ltd.,and Luoyang E-find Precision Bearing Manufacturing Co.,Ltd.,benefit from Luoyang's heavy-duty manufacturing advantages.Henan FRT Group has eighteen years experience of exploration and active innovation,has developed into a leading science and technology enterprise integrating scientific research and development, production and manufacturing, sales, technical services, and import and export trade.
FRT Group has been in the machinery industry for eighteen years and is committed to the three major fields of mechanical equipment, mechanical parts and precision bearings. The group has a group of experienced mechanical design teams, production and processing teams, assembly teams, and sales teams, and has excellent production equipments and processing technology, excellent testing instruments, complete product quality assurance system and after-sales service, consistently put product quality and users value first, adhere to integrity and long-termism, the group's core values allow customers achieving success is rooted in the hearts of company personnel.
Our Customers


FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

---
