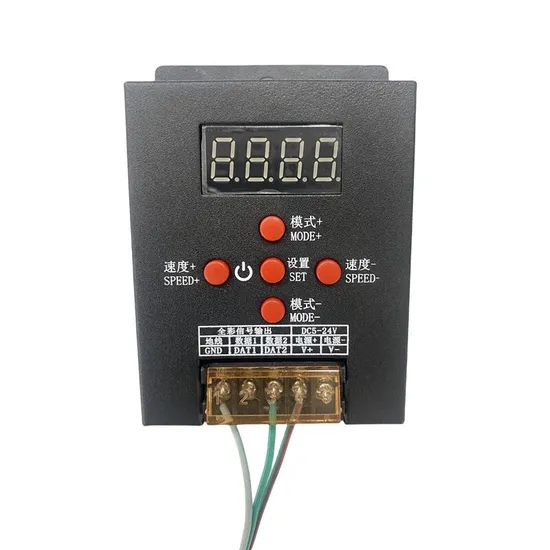

Wholesale DC5-24V T500 Rgbic Smart Controller for LED RGB RGBW Strip Light

Product Description

Product Parameter: 1.Input voltage:DC5-24V 2.Size:L97*W60*H20mm
3.Package size:L105*W67*H39mm
4.Net weight:83g Gross weight:103g
5.Output type:TTL/SPI
6.Control IC quantity:512 pixel ( means 512 piece of IC)
7.Available IC model:LPD6803,LPD1109,LPD1882,LPD1886,P9813,SM16716,TM1803,TM1903,TM1829, WS2811,WS2801;
8.Connect method:Common anode
9.Connect way:GND,CLK,DAT for LED light, V+,V- for power supply Press the mode "+" "-" key to select different dynamic mode. H001 means model 1, there are total 338 models for options. In this mode, press speed "+""-" to adjust the lighting speed.In this mode, press speed "+""-" to adjust the lighting speed.Only in this mode, press set key in 2 seconds can switch off the controller, press again can switch on.Press the set button again, The display returns to "0XXX". "0106" means it is controlling 106 pixels.Press the set button again,the display returns to "L-0X". It is the mode of selecting the right wire line sequence such as R+G+B, or G+R+B, or B+R+G.
Enter the the number of lC based on the whole lighting working. Press the mode "+" "-" button can adjust the number of lCs, which will be displayed on the digital display. It can adjust by 32pixels each pressing. The maximum number of lCs is 512 pixels Note: It will be helpful for the controller working that takes up 80% of its maximum, which means maximum 400pixels will be the best solution . Mode "+" "-", select the dynamic modes, and adjusting the IC quantity Speed "+" "-", adjust the lighting speed 1:We are manufacturer of LED strip, LED module and LED rigid bar used in signage lighting or decoration lighting2:We are always committed to supply our customers with green products, ECO-friendly and energy-saving.
3:We have full lighting decor materials supply including LED lights,aluminum profiles as well as necessary accessories.
4:We have excellent supplier can provide various showcase or cabinet to meet your signage or decoration needs.
5: What we focus on is help you save time ,energy and labour cost. We can do most of the work for you!

---
