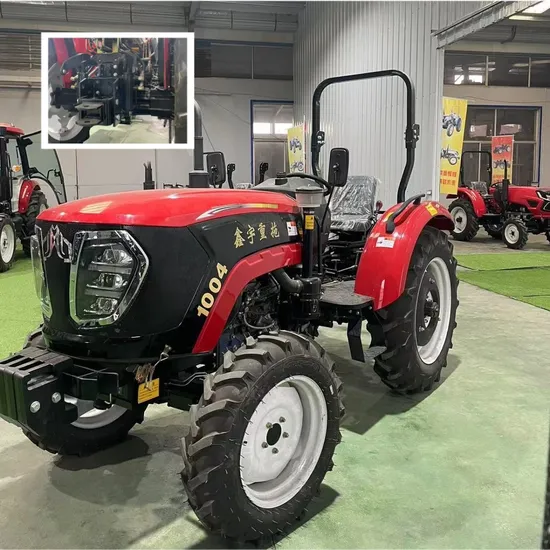

2024 New 1004 Chinese Four-Wheel Drive/Compact/Tractor with Attachments Sell Well

Product Description

Basic Info.

Model NO.	XY-Tractor		Traction Type	Traction
Drive Type	Gear Drive		Arbor Configuration	Horizontal Axis
Certification	ECE, EU, CE		Warranty	1 Year
Start	Electric Start		Transport Package	Iron Package
Specification	4CBM		Trademark	Xinyu
Origin	Made in China		HS Code	8701931000
Production Capacity	40000PCS

Sample: Support sample order.
OEM: Support technical changes.
Free train: plant training on installation and maintenance techniques.QC: Quality inspection before delivery for each unit.
SMALL FOUR-WHEELED TRACTOR

THAT REDUCES THE COST OF PERFORMING CRITICAL TASKS AND PROCESSES THAT IMPROVE THE ENVIRONMENT IN WHICH PEOPLE LIVE AND WORK.

Perfect production capacity and technology
1. Despite its small size, this technology is characterized by high performance and high efficiency
2. Maintenance of small tractors does not require a lot of free time and money. The device was considered unpretentious.
3. It is a versatile technology that can solve many problems Summer residents face problems on their land.

Our have multiple models Four wheel tractor of power.#12HP #15HP #18HP #20HP #22HP #25HP #28HP #30HP #35HP #40HP #45HP #50HP #60HP #70HP.
Farm tractor diesel engine has simple and compact structure, manipulate, light weight, can be widely used for various field. like small farmland, vineyards, flower garden, greenhouse particularly ideal for mountainous field.

Yantai Xinyu Tractor
#12hp #15hp #18hp #20hp #22hp #25hp #28hp #30hp #35hp ,
Multi-functional, reliable quality and reasonable price
Can be equipped with a variety of agricultural implements, used for different
Agricultural work
Famous engine, strengthened chassis, strong power.
Strong power
Upgraded power emission, more advanced performance, low fuel consumption and high reliability.
Low fuel consumption, high reliability
Simple operation and low maintenance
OEM design and production of tractors are available
Multi cylinder tractor #25HP #28HP #30HP #35HP #40HP #45HP #50HP #60HP #70HP.
Xinyu tractor use famous s brand front drive axle so that quality is highly reliable.
Adopting a new type of high pressure lifter makes the work more convenient and flexible.
Equipped with external double oil cylinders, the working effect is better.

1004 center support	Overall dimensions (3.1*1.5*2.05) (LWH) Wheelbase adjustable
	Front wheelbase 1.29 meters Wheelbase 1.98 meters
	8+8 power take-off special gearbox with shuttle shift
Engine	90-130 hp 4100 supercharged Lycoming engine
	Rear wheel 11.2-28 Front wheel 750-16
Tire	Rear two sets of hydraulic quick coupling multi-way valve with strong lift and lowering
	With safety rack, with two rear counterweights, front 4 counterweights
	with simple awning +500
	Rear output 540-720
Weight	1800KG

MODEL			XY-Mini tractor 12hp
Engine	Model		195
	Type		1cylinder,4-stroke,horizontal,water-cooled,diesel
	Cooling Mode		Condenser (Radiator)
	Power		12hp
	Combustion System		Direct Injection
	Cylinder Bore		92mm
	Piston Stroke		95mm
	Compression Ratio		18:01
	Rated Speed		2400rpm
	Fuel Efficiency:		≤257gl/kw.hr
	Displacement		0.632
	Fuel Tank Capacity		8L
	Water Tank Capacity		2L
	Net Weight		112kg
	Gross Weight		122
Overall dimensions:(L×W×H)			2140×905×1175mm Without tiller
Overall dimensions:(L×W×H)			2600×1000×1175mm With tiller
Front wheel size			5.00-12
Back wheel size			7.50-16
Ground clearance			180mm
Working weight			490kg
Transmission style			Belt transmission
Steering style			Steering wheel power steering system
Brakes			Two side wheel brake
Starter			Electric start/Hand crank
Seat			Adjustable
Gear style			(3+1)*2; 6 Forward, 2 Reverse
Speed		Forward	1.68, 2.61, 4.22, 6.79, 10.57, 17.08
		Reverse	1.29, 5.22
Rotary tiller		Transmission Type	Middle Gears Transmission, or side gears transmission
		Width	1000mm Adjustable
		Number of blades	18-20pcs
		Working depth	150-250mm
		Up and down control	Hydraulic system

Model	XY-Small tractor 25hp
Wheel drive	4×2
Dimensions	2700×1400×1400
Weight(kg)	950-1010
Front wheel(mm)	900,1000,1100,1200 adjustable
Rear wheel(mm)	960,1000,1100,1200,1300 adjustable
Wheel base(mm)	1400
Min. ground distance(mm)	350
Gear shift	6+1
Tyre size	9.5-20/500-14
ENGINE Type
Rated power(kW)	18.32kw
Rated speed (r/min)	Water cooled,vertical,4 stoke and direct injection
Start	Electric
Transmission	2200
Clutch	single ,dry friction, single clutch
Connection/PTO	3×2+1
	3 point suspension/ Rear P.T.O 540

MODEL	XY- Middle tractor 50hp
Horsepower&Drive Type	50hp, 4×4
ENGINE
Engine Model	50HP
Type	Vertical, Water-Cooled, Four Strokes, Direct in Injection
Rated Output(kW)	36.8
TRACTOR PARAMETER
Dimension L*W*H (mm)	3558*1500*2245
Wheel Base (mm)	1900
Wheel Tread F/R(mm)	1060/1100
Min Ground Clearance(mm)	300
TRANSMISSION
Gear Shift	8F+2R
Clutch Type	Dry Single-stage
RUNNING SYSTEM
Tire F/R	650-16/11.2-24
Steering	Hydraulic Steering
Brake	Toe Type
Park Brake	Latch Pedal
WORKING SYSTEM
Hitch	Partial Separated Type, 3-Point hydraulic hitch,Category 1
Max. Lift Force(N)	≥6300
Rear PTO	Rear Rectangle Spline, 6 Teeth, 540/720rpm

Our transportation process:
Treat every customer seriously, complete the order task on time, check the quality of the product at all levels, carefully packaged to ensure that the customer receives intact and undamaged goods. Thank you for every customer's trust and attention look forward to seeing you again!
Yantai Xinyu Heavy Industry Technology Co., Ltd. is a professional manufacturer of construction machinery and a professional enterprise that produces small tire loaders for engineering purposes. This place boasts charming scenery and prosperous economy, serving as the junction of Yantai, Qingdao, and Weifang. The Weiwu Expressway, Dalailong Railway, National Highway 206, and Laizhou Port with 10000 ton berths run through the east, west, north, and south, with convenient transportation and superior geographical location. Our company has passed the certification of the National Bureau of Technical Quality Supervision and obtained the Special Equipment Manufacturing License, and is listed as a national special equipment production enterprise. The company has an experienced and innovative workforce, consisting of 40 employees, 15 professional and technical personnel, and 4 engineers. It also has comprehensive inspection and monitoring methods and a quality assurance system. Since its establishment, our company has always adhered to the principle of "quality first, sincerity" The business philosophy of "believing in the world" has won the bid with its strong mechanical design, production and manufacturing capabilities, first-class product quality, and good after-sales service.The recognition and praise of the vast number of users.
We have many models about the machine, if you are interested, we will send the catalogue and details for you, please send the enquiry.thanks.
FAQ
1. who are we?
We are based in Yantai, China, start from 2004,sell to Eastern Europe(60.00%),Southeast Asia(10.00%),Mid East(10.00%),Western
Europe(10.00%),North America(5.00%),Africa(5.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
small horsepower tractor,micro
tiller,cultivator,seeder,disc plough,PTO drive shaft and farm implements also forklift,excavator,tire,etc.
4. why should you buy from us not from other suppliers?
We can do business on 30% prepay,70% OA 60 days
and could purchase many different kinds of products from different suppliers, and delivery them in one batch.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,Russian

---
