100m3/H Portable Mobile Concrete Mixing Plant with Drum Mixer and Batching Machine

Product Description

Product Description

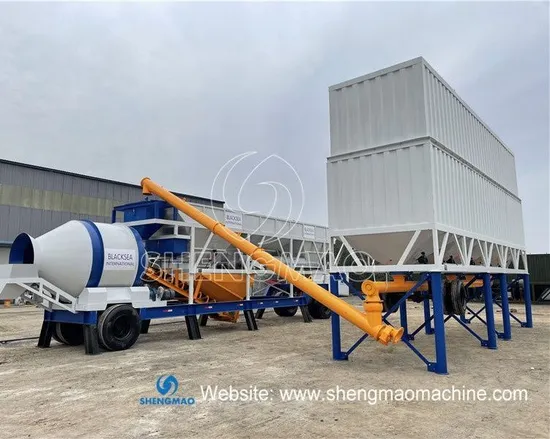

Mobile concrete batching plant
Mobile concrete batching plant is specially designed for projects that we need to change job sites from time to time. It is very easy to disassemble and move to another job site, the installation is also quite easy. For our new type of mobile batching plant,all parts are mobile and no reinforced concrete foundation is needed, including the cement silo. You just need a car to tow it to the new job site, place the machine in the right position and connect the cables, then you can use it.
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. The capacity of mobile batching plant we have is from 25m3/h to 100m3/h. Welcome to contact us for details and quotations.

YHZM series of mobile concrete batching plant
Model	YHZM20	YHZS30	YHZS60	YHZS100
Production capacity (m3/h)	20	30	60	100
Concrete mixer	JZM500	JZM750	JZM1500	JZM2000
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	1.5	1.5	1.5	1.5
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	42	46	67	77.5
Total weight)	12	13	14.5	26

Detailed Images
Precise Weighing System
Customizable number of Bins
Efficient Screw Conveying
Panel / Computer Control Cystem
High-Quality Mixer
Our Projects
Packaging & Shipping
Our Service
Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings
as per customers' requirements;
3. Providing quotations.

In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.

After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;

---
