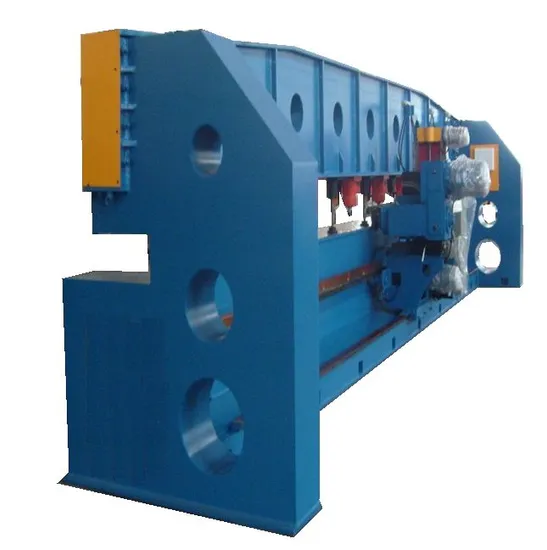

High Efficiency Edge Milling Machine CNC Edge Miller

Product Description

High Efficiency CNC Edge Milling Machine Product Description
This series machine is a kind of advanced and high efficient milling equipment to prepare the groove of plate before welding instead of planing. Compared with planer, it has the advantages of saving power, low investment and high accuracy of surface finish. It is widely used in the industries as pressure vessel, boiler, ship-building, power plant, petrochemical and machinery, etc.
Product features
There are single milling head and double milling head; and the milling head can be standard facer or molding facer for your options.
1,The applicable processing sheet size varies greatly;
2,The equipment structure is reasonable in design, good in rigidity and strong in strength;
3,High processing efficiency, especially for larger workpieces, four milling power heads can be involved in the work at the same time, greatly improving production efficiency and shortening processing time;
4,The loading and unloading of the moving upper beam is more convenient and quicker;
5,The hanging line form of the sliding line is safe and beautiful;
6,The main structure is welded parts with tempering to eliminate stress treatment and to avoid deformation phenomenon;
7,The guide rail is arranged in a hanging type and a seat type, which greatly improves the stability of the ordinary suspension type and reduces the vibration phenomenon in the process;
8,The conventional milling machine has its guide rail welded to the bed and processed. Since the bed must be annealed, the surface of the guide rail is soft and affects the service life of the whole machine. The guide rail of the company is made of high-quality 45 steel forging and roughing. Quenching and tempering treatment, and then finishing, quenching and fine grinding, and then fixing to the bed with screws;
9,The milling and pinning feeding mechanism of the machine is driven by frequency motor. The feeding speed of milling and pinning is 0.13-1.2 m/min, and the fast-forward and retreating speed can reach 1.5 m/min, which greatly improves the production efficiency;
10,The milling cutter disc of head of the machine can adopt standard milling cutter disc;
11,The pressing method of the machine adopts hydraulic pressing method, which is convenient and quick;
12,The main transmission parts of the machine are installed inside the cabinet or concealed parts, and the lubrication protection can be effectively guaranteed.
Product Parameters

Model	XBJ-3	XBJ-6	XBJ-9	XBJ-12	XBJ-15	XBJ-18
Effective milling zone length(m)	3	6	9	12	15	18
Milling angle adjustable(^)	0-45
Applicable steel pate thickness(mm)	6-50
Max.milling width by on pass(mm)	8
Milling travel speed(m/min)	0.25-0.6
Milling return speed(m/min)	4
Spindle speed(rpm)	125-630
Hydraulic pressure(mpa)	>=3.5
Number of clamping shoes(each)	5	8	11	15	19	23
Pass height(form FL)(mm)	900
Feeding motor capacity(kw)	1.5
Hydraulic motor capacity(kw)	4

*We reserve the right to alter specifications without prior notice.
Detailed Photos

Company Profile
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength
*We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.*Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.*To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
FAQ
Q:Who are we?
A, We have 3 share joint factoys in China with total around 10000 square meters with more than 150 peoples.
Q:Does the machine have CE certificate?
A:Yes, others certifications also can be sent
Q:What's the shipping method?
A: International express and sea transportation,Depend on customer.
Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder in China, you can let your forwarder ship the products for you.
Q:What's the Payment method?
A:T/T,L/C and other payment method, Depend on customer.
Q: What is our payment term?
A:We can accept the payment by T/T and Trade assueance .
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.And we warmly welcome you to China for inspection.
Q:How to Place an order?
A:Please kinldy send us your order by email,we will confirm the PI with you .
we wish to know the below:your details address,phone/fax number,destination,transportation way;
Product informaiton:item number,size,quantity,logo,etc

---
