Full Auto Packing Paper Tissue Paper Core Tube Spiral Rolling Cutting Making Machine

Product Description

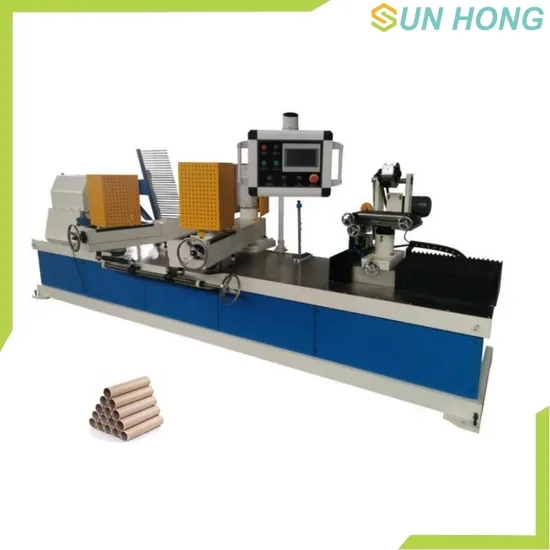

Paper Tube Making Machine
Final product: Cylindrical paper tube Raw material:Bobbin paper, kraft paper, white glue
Technical Parameter

Inner diameter	¢35mm-¢200mm
Thickness	2-20mm(It varies according to the number of dense layers and the thickness of the paper)
Production speed	0-20m/min(The speed is different due to the problem of paper tube specification and paper quality)
Cutting length	500mm-4000mm
Main motor power	15Kw
Working air pressure	0.6Mpa
Fixed length mode	Infrared / encoder
Cutting motor	0.75Kw
Gluing system	GT type
Paper holder	SZ type
Operator	2-3 persons

Main Function
A. Microcomputer length setting and accurate cutting length are adopted: the touch screen is convenient to adjust the data.
B. It adopts man-machine interface, special operating system and hanging operation panel, which makes the operation easier.
C. The paper strip tension control cutting system consists of an air pressure system, and the air cylinder compresses the paper strip, and its tightness can be adjusted at will.
D. 30 pieces of paper for gluing, including gluing box and pneumatic tension control, can be glued on both sides or on one side according to the strength requirements of the paper tube.
E. Mechanical paper feeding increases efficiency, reduces production personnel and reduces production costs.
F. The flange shaft is designed to be retractable, and the inner diameter of the paper tube can be fine tuned with the taper mandrel.
G. The transmission adopts frequency conversion speed regulation motor to adapt to the production of paper tubes with different requirements.
H. When the inner paper breaks, it can automatically alarm and stop the machine, so as to avoid sticking the mandrel with white glue.
I. The paper tube cutting part is controlled by the moving servo motor, which can track the production speed of the paper tube to achieve synchronization.
J. The paper pipe is cut by high-speed saw.

---
