Welcome to visit

High Quality and Precision Titanium Tube ASME Sb338 Pipe Plate Wire

Negotiable 50 kg (MOQ)

Basic Info.

Model NO.
TI-001
Purification Method
Vacuum Melt Process
Preparation Method
Metallothermic Reductio
Application
Catalyst Masses, Energy Materials, Photoelectric Material, Photorecording Material, Medicine, Astronavigation, Computer
Product Type
Rare Earth Metal
Composition
Neodymium
Grade
Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, G
Thickness
0.3-3mm
Standard
ASME Sb338
Transport Package
Wood Box
Specification
2.5-150mm
Trademark
none
Origin
China
HS Code
8108904090
Production Capacity
100ton/Month

Product Description

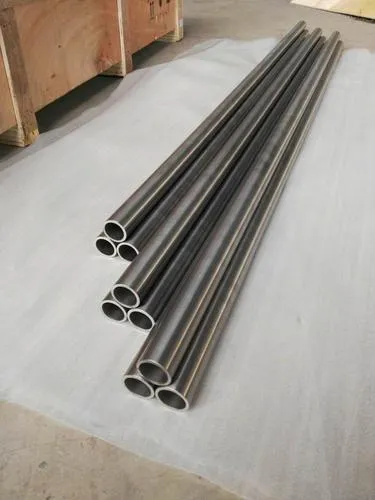

name:Titanium tube
standard:GB/T3625,ASTM SB338, B338,ASTM B862
CERT:ISO9001
OUT DIA: 6MM-89MM
length:according to buyer's request
thickness:0.3-3mm
material:Material:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23
delivery time:according to buyer's request or the stock available
packing:export standard package with wooden case
informtaion:we can supply the parts according to buyer's request or specification
Product Parameters
1.Chemical requirements
Grade N(≤) C(≤) H(≤) Fe(≤) O(≤) Al(≤) V(≤) Pd(≤) Mo(≤) Ni(≤) Ti
GR1 0.03 0.08 0.015 0.2 0.18 / / / / / bal
GR2 0.03 0.08 0.015 0.3 0.25 / / / / / bal
GR3 0.05 0.08 0.015 0.3 0.35 / / / / / bal
GR4 0.05 0.08 0.015 0.2 0.4 / / / / / bal
GR5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / bal
GR7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / bal
GR9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
GR12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 bal
GR23 0.05 0.08 0.012 0.25 0.13 5.5~6.5 3.5~4.5 bal
2.Tensile requirements
Grade Tensil strength(≥) Yeild strength(≥)) Elongation(≥)%)
ksi Mpa ksi Mpa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR3 65 450 55 380 18
GR4 80 550 70 483 15
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 483 15
GR12 70 483 20 345 18
GR23 120 828 110 760 10
