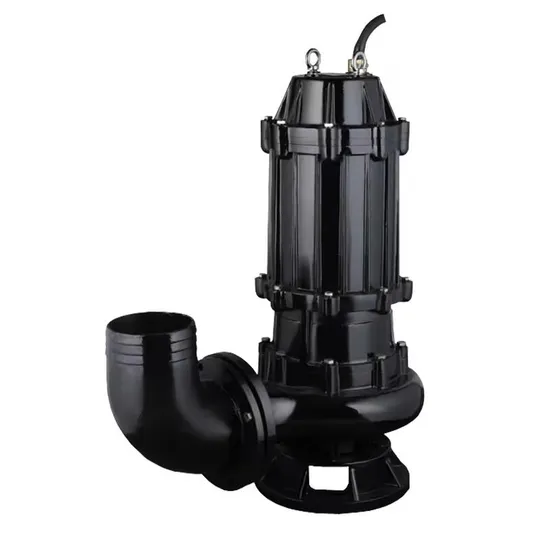

Heavy Duty Submersible Sewage Pump Vertical High Pressure Centrifugal Pump with Mixer

Product Description

Product Description
QW series submersible sewage pump is developed on the basis of advanced technology of digestion and absorption of similar foreign products. It has the advantages of high efficiency anti-entanglement, no blockage, automatic coupling, high reliability and automatic control, etc. It has unique functions in discharging solid particles and long fiber dimension garbage.
The series of pumps discharge water caliber of 50~600mm, flow of 10~7000m3/h, head of 5~60m, power of 1.5~315kw
Through the solid particle diameter of 20~145mm.
Application and characteristics
QW series submersible sewage pump is mainly used in municipal engineering, industry, hospital, construction, hotels, restaurants and other industries. Used for discharging silt with solid and various long fibers, waste water, urban sewage (including corrosive corrosive media).
QW series submersible sewage pump small volume, compact structure, high efficiency, can be based on user requirements for automatic control of water level, and equipped with automatic protection device and control cabinet, double rail automatic installation system.
Conditions of use
1. Motor rated voltage 380V(660V), frequency 50Hz three-phase AC power supply.
2. Conveying medium temperature does not exceed 40P
3. Conveying liquid medium PH value is 4~10
4. The volume ratio of solids in the conveying medium is below 2%
5. Conveying medium density is less than 1.2x103kg/m3
The significance of pump type
150 QW 100 -- 15 -- 11
Motor power (kw) Head (m) Flow (m3/h)
Submersible sewage pump
Outlet diameter (mm)
1. The unique cable sealing design eliminates the hidden danger of cable water.
2. The stator is equipped with thermal protection element to ensure the motor running life.
3.18.5kW above the pump use external circulating water automatic cooling, to ensure that the electric pump in the lowest level of the state of safe operation.
4. The bottom of the motor cavity is equipped
Float switch to protect the mechanical seal of the motor side.
5. Oil and water probe is installed on the upper end of the oil chamber of the pump and motor to monitor and control the mechanical seal of the water pump side. Once water leaks, the control system will alarm for protection.
6. High-performance mechanical seal, sealing material for carbonized bustard, silicon carbide and hard alloy, prevent water into the motor, to ensure the safe and reliable operation of the motor.
7. The auxiliary impeller is used to balance the mechanical sealing external pressure to prevent water from entering the oil chamber, so as to extend the service life of the electric pump.
8. Impeller design is unique, large runner can pass through long fiber and dirt, anti-clogging, anti-winding, strong overflow energy.
9. There is a replaceable wear sleeve between the impeller and the lower end of the volute to keep the pump running with the best efficiency.
Product Parameters

Series	Model number	Discharge caliber (mm)	Rated flow rate (m3/h)	head (m)	Motor power (kw)	rpm (r/min)	Max. Allowed through particle dia, (mm)	weight (kg)
1	50QW15-15-1.5	50	15	15	1.5	2860	20	60
2	50QW18-15-1.5	50	18	15
3	50QW25-7-1.5	50	25	7
4	50QW25-10-1.5	50	25	10
5	50QW15-22-2.2	50	15	22	2.2	2860		70
6	50QW22-15-2.2	50	22	15
7	50QW27-15-2.2	50	27	15
8	50QW42-9-2.2	50	42	9
9	80QW50-10-3	80	50	10	3	2860	30	110
10	100QW70-7-3	100	70	7
11	50QW24-20-4	50	24	20	4	2860	20	130
12	50QW25-22-4	50	25	22
13	50QW40-15-4	50	40	15
14	80QW60-13-4	80	60	13
15	100QW70-10-4	100	70	10			35	130
16	100QW100-7-4	100	100	7			40
17	100QW25-30-5.5	100	25	30	5.5	2860	30	180
18	80QW45-22-5.5	80	45	22
19	100QW30-22-5.5	100	30	22
20	100QW65-15-5.5	100	65	15			35
21	150QW120-10-5.5	150	120	10			40
22	150QW140-7-5.5	150	140	7			40
23	50QW30-30-7.5	50	30	30	7.5	1450	30
24	80QW38-30-7.5	80	38	30
25	80QW50-22-7.5	80	50	22
26	100QW70-20-7.5	100	70	20
27	150QW145-10-7.5	150	145	10
28	150QW210-7-7.5	150	210	7			45	208
29	100QW50-35-11	100	50	35	11	1450	30	293
30	100QW40-36-11	100	40	36
31	100QW100-22-11	100	100	22			35
32	100QW70-22-11	100	70	22
33	150QW100-15-11	150	100	15
34	200QW300-7-11	200	300	7			55	290
35	200QW360-6-11	200	360	6
36	100QW87-28-15	100	87	28	15		40	360
37	100QW100-28-15	100	100	28
38	100QW140-18-15	100	140	18
39	150QW150-15-15	150	150	15			50
40	150QW200-10-15	150	200	10
41	150QW200-14-15	150	200	14
42	200QW400-7-15	200	400	7			60
43	150QW70-40-18.5	150	70	40	18.5	1450	35	520
44	200QW250-15-18.5	200	250	15			50
45	200QW250-17-18.5	200	250	17
46	200QW300-10-18.5	200	300	10			55
47	300QW720-55-18.5	30	720	5.5			65
48	150QW130-30-22	150	130	30	22	980	40	820
49	150QW150-22-22	150	150	22
50	150QW200-22-22	150	200	22
51	200QW400-10-22	200	400	10			50

Detailed Photos
Different types of display
Customer usage display

Workshop display
Warehouse display
Product gallery

---
