2024 New Building Material Light Gauge Metal Steel Frame Roll Forming Machine for Frames

Product Description

Product Description
2023 New Building Material Light Gauge Metal Steel Frame Roll Forming Machine for Frames
Light Gauge Steel Frame Machine There are many types of light steel villa keel machines on the market, such as C75, C89, C140, and C300. In general, light steel villas below 4 floors in the market mostly use C89 light steel villa keel machine to process aluminum-zinc steel belts.But you can customize it according to your needs.And this machine is for produce C89 steel frame for villa house making.

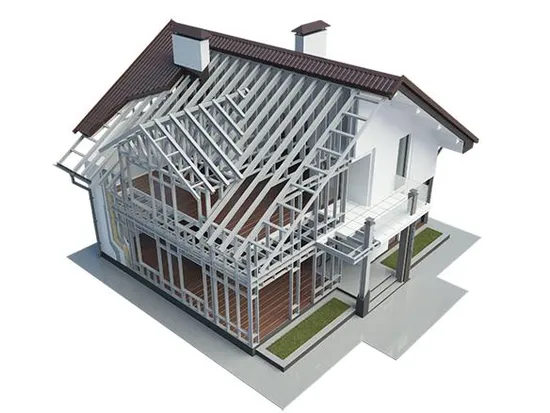

The application of finished products C89 chanel for your reference.

Technical parameters
Size	C89
Dimension	4200*800*1100mm
Main Servo Motor Power	7.5KW
Hydraulic Motor	7.5kw
Forming Steps	9Steps
Forming Speed	4-5tons/8hours
Voltage	380V/50HZ/3PH
Effective Width	89mm
Material Width	174mm
Flange Height	38mm
Lip	9mm
Material Thickness	0.6-1.2mm
Tolerance for cutting and punching	±0.5mm
Tolerance for forming	±0.75mm
Control System	IPC Computer Controlling System
Design Software	Vertex Software
Material for All Roller	SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers
Material for Shaft	SKD-11
Material for Puncher	SKD-11
Material for Cutter	SKD-11

Why choose Steel Framing There are many reasons why steel framing has come to the forefront as one of the best and most feasible alternative building
materials for residential and commercial construction. Steel is a Superior Construction Material.
1. Highest strength-to-weight ratio of any building material.
2. 100% recyclable.
3. 68% industry recycling rate.
4. Non-combustible - does not burn nor contribute fuel to the spread of a fire.
5. Inorganic - will not rot, warp, split, crack or creep.
6. Dimensionally stable - does not expand or contract with moisture content.
7. Consistent material quality - produced in strict accordance with national standards, no regional variations.
Product Overviews
Process Drawing
Company Profile

Our factory is a professional Roll Forming Machine manufacturer with 17 years experience,we have 100 well trained workers and 20,000m'(square meters) workshops.Specializing in the production of various types of tile press equipment,the development and production of automatic intelligent control tile press equipment production line, C type steel, dust collector anode plate and other equipment.Our factory can design and produce various special-shaped cold-bending forming equipment according to the different needs of users.
Our Products
Packaging & Shipping
FAQ
1. who are we?We are based in Hebei, China, start from 2016,sell to North America(10.00%),Southeast Asia(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),South Asia(10.00%),South America(7.00%),Africa(6.00%),Oceania(5.00%),Central America(5.00%),Eastern Europe(4.00%),Western Europe(2.00%),Domestic Market(1.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Light Gauge Buildings Steel Frame (LGBSF) Roll Forming Machine,Roll Forming machine,Glazed Tile Forming Machine,Roof Panel Wall Panel Molding Machine,C/Z Steel Machine4. why should you buy from us not from other suppliers?Our factory is a professional Roll Forming Machine manufacturer with 17 years experience, we have 100 well trained workers and 20,000 (square meters) workshops.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,EXW,FAS,FCA,DDP,DAF;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
