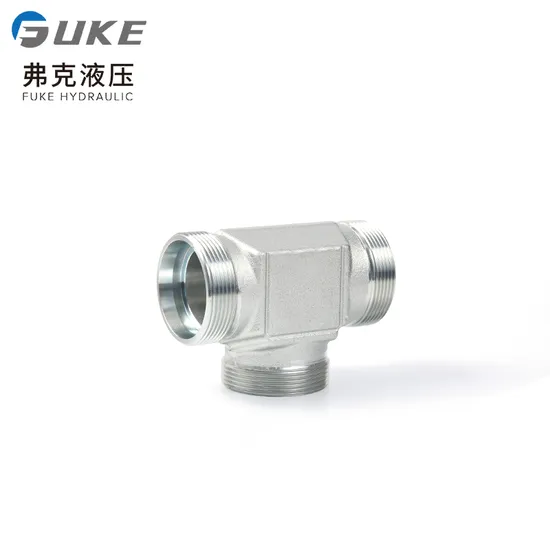

Carbon Steel Tee Fittings Three Way Pipe Thread Quick Connection

Product Description

Product Description
AC AD T Bsp thread with captive sealAC AD T tee male coupling with 24° tapered female triple thread for forming to pipe ends, welded pipe, ferrule connections, Pressure range up to 630bar/9000PSI,
According to international standards:DIN3861/ISO8434,
Available with standard pipe diameters:
24° tapered light (DIN2353) 06L-42L,
24° tapered heavy (DIN2353) 06S-38S,
available with tee reducers. ) 06S-38S,
available with tee reducers. Products Details

Product Standards:	DIN3861/ISO8434
Product Materials:	Carbon steel/stainless steel
Surface Finish:	White zinc/zinc-nickel alloy
Application:	Hydraulic systems are particularly suitable for construction, agricultural, mining and painting machinery, but also for steam and oil and gas media (but please note the choice of sealing material)

Detailed Photos

PART NO	THREAD	TUBE O.D.	DIMENSIONS				MPa
	E,F,G	D1,D2,D3	I1,l2,I3	L1,L2,L3	s1	s2,s3,s4
AC-08	M8X1	4	11	21	9	10	10LL
AC-10	M10X1	5	9.5	21	9	12
AC-10LL	M10X1	6	9.5	21	9	12
AC-12LL	M12X1	8	11.5	23	12	14
AC-12	M12X1.5	6	12	27	12	14	25L
AC-14	M14X1.5	8	14	29	12	17
AC-16	M16x1.5	10	15	30	14	19
AC-18	M18x1.5	12	17	32	17	22
AC-22	M22x1.5	15	21	36	19	27
AC-26	M26X1.5	18	23.5	40	24	32
AC-30	M30×2	22	27.5	44	27	36	16L
AC-36	M36x2	28	30.5	47	36	41
AC-45	M45x2	35	34.5	56	41	50
AC-52	M52X2	42	40	63	50	60
AD-14	M14X1.5	6	16	31	12	17	63S
AD-16	M16X1.5	8	17	32	14	19
AD-18	M18X1.5	10	17.5	34	17	22
AD-20	M20X1.5	12	21.5	38	17	24
AD-22	M22X1.5	14	22	40	19	27
AD-24	M24X1.5	16	24.5	43	24	30	40S
AD-30	M30X2	20	26.5	48	27	36
AD-36	M36X2	25	30	54	36	46
AD-42	M42X2	30	35.5	62	41	50
AD-52	M52X2	38	41	72	50	60	31.5S
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut , it is necessary to insert suffix "RN" after our part no.,for example AC-22RN.

Company Profile
Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic fitting, high-precision hydraulic valve blocks, high-pressure ball valves, and check valves that meet ISO, DIN, and SAE standards.
The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing
Producing Department
Inspection Area Warehouse
Our Advantages 1. Raw material, 100% testing before delivery, 99% no leakage, and wonderful torque.
2. Have cooperated with a lot of importers all over the world.
3. Experienced in doing business with big customers as per high standard request
4. Quick and stable delivery time
5. Professional R&D Team.
6. Free samples could be sent by request.
Certifications
FAQ1. Can I get a Sample?
We do provide some small specific samples accordingly based on the process we situate in.
2. Do you provide customized products?
We are good to offer customized services in terms of logo labeling, manufacturing based on samples or blueprints, etc.
3. Will communication be a problem?
Our sales team had great knowledge of our products and acquired solid English communication skills in both written and speaking; the communication can be accessed either literally or verbally via any social networking platform.
4. Payment Method.
L/C, T/T, PayPal, Western Union, etc. Principally we do not accept third-party transactions via China's mainland region channel.
5. Why Choose us?
Quality: 100% leakage, material, and functionality test in process and before shipping.Variety: Highly customizable flexibility. Reliability: 5 years of manufacturing experience.Efficiency: Quick& Effective response.Utility: We are Manufacturer.Flexibility: OEM/ODM are provided.Authentication: Real-time plant audit provided.Competitiveness: Price is negotiable on large volumes.

---
