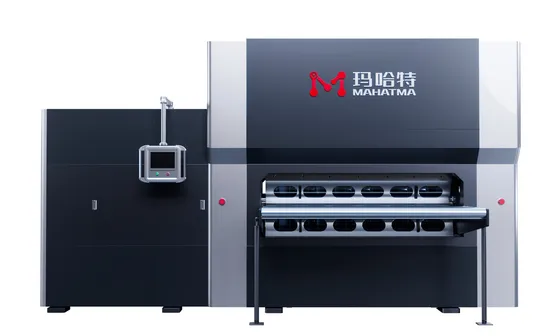

Heavy Plate Industrial Grade Aluminum Copper Alloy Plate High Precision Metal Sheet Hydraulic Leveling Straightening Machine

Product Description

Hydraulic precision leveling machine is also known as hydraulic leveling machine and hydraulic leveling machine. The straightening machine is designed and produced for plates, sheets and parts that require high surface finish.
The hydraulic leveler adopts a row of intermediate rollers between the upper and lower rows of leveling work rolls and the support bearing (wheel), forming a double or triple upper and lower row, a total of four or six roller groups; leveling The force distribution of the flat roll is uniform, the structure is rigid, the deflection of the work roll is small, the leveling precision is high, and the harmonic attenuation is formed, and the leveling roll is optimally supported, and there is a small distance between each other . The integrated leveling gap adjustment ensures that the leveling gap remains constant during the entire leveling process, including changes in the part cross-section. Even those burnt cuts that are difficult to level are no problem, making it flat and virtually stress-free in just minutes. Fundamentally solve the common problems of uneven leveling, roll marks, workpiece slump, and sickle bending that are common in ordinary leveling, improve the straightening accuracy of plates, and have a wide range of applications. No rolling marks will be left on the surface of the material, and the straightening accuracy higher.
Equipment performance:
1. The powerful hydraulic pressure keeps the gap between the upper and lower straightening rollers (mechanical dead limit) constant, ensuring consistent straightening effects for large batches of parts;
2. 10-inch high-precision touch screen display, PLC control, visual input, editing, modification, and storage of process parameters;
3. It only takes a few minutes to make stampings, plates and parts flat and almost stress-free.
4. The precision leveling machine is a metal plate that has been repeatedly bent through a large number of staggered leveling rollers. The amount of bending can be adjusted to achieve the bending scheme required for leveling, so it does not damage the appearance of the plate.
5. After the metal sheet is repeatedly bent, the length of the metal fiber gradually tends to be consistent, the internal stress of the material is eliminated at the same time, and the metal sheet is naturally leveled
6. Many users use cutting methods to achieve flatness, and the use of precision leveling machines can save a lot of materials
7. Since the precision leveling machine adopts continuous and repeated bending technology, the leveling efficiency is doubled, entering the continuous production line, saving a lot of labor costs and getting rid of the technical dependence of traditional leveling experience
This product draws lessons from Swiss HRC precision leveling machine and German ARKU (Aku) precision leveling machine principle, adopts innovative design ideas, advanced manufacturing technology, and fills the blank of domestic plate and sheet parts precision leveling general equipment.
The performance fully reaches the leveling ability of Swiss HRC precision leveler and German ARKU (Aku) precision leveler.
While ensuring the quality, we will try our best to control the manufacturing cost to meet your purchasing budget.
Features:
1. The number of leveling rollers is large and the arrangement is precise.
2. The application of multiple auxiliary support rollers is used to ensure that the leveling roller does not bend when it is stressed.
3. Strong hydraulic pressure keeps the gap between the upper and lower leveling rollers always uneven.
4. The hydraulic machine structure with good rigidity reduces the overall deformation to the minimum when the machine is working.
5. The space on the right side of the equipment is open, which is convenient for changing rollers and cleaning.
6. Vertical independent electric control box, touch screen control, easy to operate.

---
