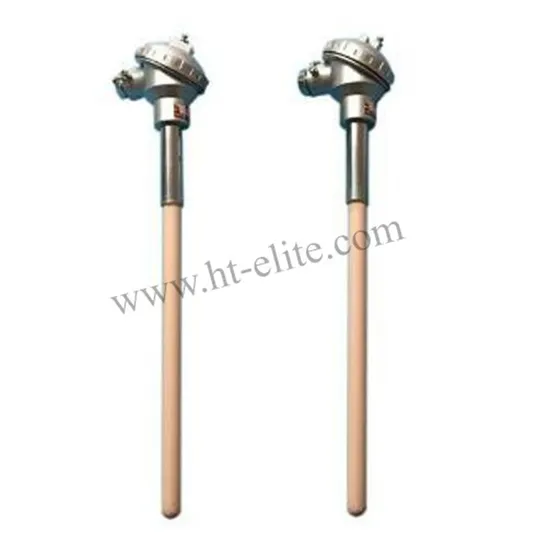

Industrial K and J Rtd Type Best Thermal Probe Temperature Sensor Probe

Product Description

Product Description High Temperature Sensors K Type Thermocouple PT100
1. Introduction
High Temperature Thermocouples are specifically designed for durability and reliability in high temperature applications to 4200° F (2315° C).
Thermocouple temperature ranges are dependent on element calibration.
The probes utilize either Platinum/Rhodium (types R, S, or B) or Tungsten/Rhenium (types G, C, or D) elements, with a variety of insulations and sheath materials.
2. Applications:
Generally involve oxidizing, reducing, inert gas or contamination atmospheres that challenge the life of the thermocouple. Product Parameters
3. MEASURING RANGE
The maximum temperature is based on the lowest max. temperature of the element, insulation and sheath material.

Category	Code	Temperature Range
Ni-Cr-Si----Ni-Si-Mg	N	-40° C to 1000° C
Ni-Cr----Ni-Si	K	-40° C to 1000° C
Ni-Cr----Cu-Ni	E	-40° C to 800° C
Fe----Cu-Ni	J	-40° C to 750° C
Cu----Cu-Ni	T	-40° Cto 350° C
Pt-Rh13----Pt	R	0° C to 1000° C
Pt-Rh10----Pt	S	600° C to 1600° C
Pt-Rh30----Pt-Rh6	B	600° Cto 1700° C

4. B Type Thermocouple Technical Indicators

Conductir Material	Type	Graduation	Spec. of protection tube(mm)				Use temperature°C
			Total Lenght	Length in fluid	external diameter of ceramic tube	Material of protection tube
PtRh10-Pt	WRP	S	300 350 400 450 550 650 900 1150 1250	150 200 250 300 400 500 750 1000 1100	φ16 φ25	High Al content tube	0-1300
PtRh30-Ptrh6	WRR	B				Corundum tube	0-1600
PtRh13-pT	WRQ	R			φ16 φ20	High Al content tube	0-1200
Mini PtRh10-Pt	WRP-100	S	252	252	φ7	High Al content tube	0-1200

5. Diagram for example:
Detailed Photos
6. Photos for Reference

---
