Basic Info.
Measurement Object
Outside Diameter
Precision Measuring Device
Precision Measuring Device
Product Name
Micrometer Heads
Product Range
0-5mm, 0-6.5mm, 0-13mm, 0-15mm, 0-25mm, 0-50mm.
Product Resolution
0.001mm.
Resolution(Inch)
0.00005"
Measuring Face
Hardened Steel (> 60 HRC)
Product Accuracy
+/-0.0001"+/-0.002mm
Measuring
Metric and Inch
Graduation
Metric 0.01mm,Inch 0.001"
Maximum Perissible Error J Mpe
2 Um
Spindle End
Spherical (Sr4)
Transport Package
Paper Box
Origin
Jiangsu, China (Mainland)
Production Capacity
1000/Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg
Product Description
Product Description Essential details:
Digital/Analog : Analog
Inch-Metric: Metric
Range: 0 - 13 mm
Graduation: 0.01 mm
Maximum Perissible Error J MPE: +2 um
Spindle end: Spherical (SR4)
Spindle pitch: 0,5 mm
Stem φ:9.5 mm
Stem:Plain
Measuring face: Hardened steel (> 60 HRC)
Mass: 40 g
Regular size parameters
Model Number: 0-50mm Micrometer Heads.
Resolution: 0.001mm.
Resolution(inch):0.00005".
Range: 0-5mm, 0-6.5mm, 0-13mm, 0-15mm, 0-25mm, 0-50mm.
Customized support: OEM.
Measuring Face: Carbide tippred.
Frame: Sprayed.
Accuracy: +/-0.0001"+/-0.002mm.
Measuring: Metric and inch.
Graduation:metric 0.01mm,inch 0.001"
· Carbided tips
· Rachet stop
· Packed in plastic box

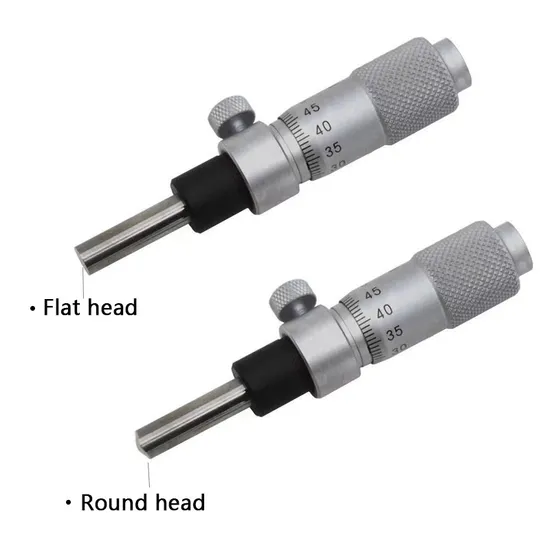

Tybe:Plain , flat tip/Plain , spherical tip/With clamp nut, flat tip/With clamp nut , spherical tip.
| Model.No | Range(mm) | Reading(mm) |
| 1 | 0-6.5 | 0.01 |
| 2 | 0-13 |
| 3 | 0-25 |
| 4 | 0-50 |
Detailed Photos
Product Parameters
Our Factory
Kindly pls contact service , if you have any problem, thank you.!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
>>
