160t Pet Preform Injection Molding Machine

US$30,000.00 1 SET (MOQ)

Basic Info.

Model NO.
LTY-PET-1600
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
160T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years

Product Description

SPECIFICATION LTY1600 PET

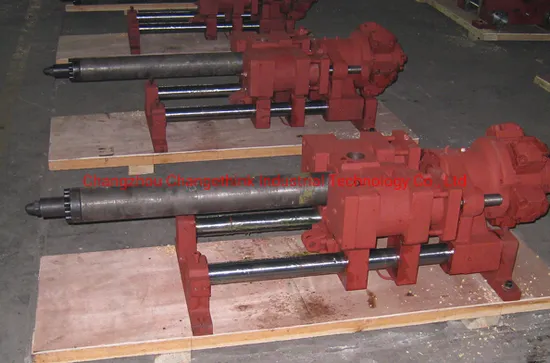

INJECTION UNIT
SCREW DIAMETER mm 65
SCREW L/D RATIO L/D 25
SHOT VOLUME(THEORETICAL) cm3 895
INJECTION WEIGHT(PS) g 961
INJECTION RATE g/s 384
INJECTION PRESSURE MPa 130
SCREW SPEED rpm 134
CLAMPING UNIT
CLAMP FORCE KN 1600
OPEN STROKE mm 435
SPACE BETWEEN TIE BARS(W*H) mm 470*470
MAX.MOULD HEIGHT mm 560
MIN.MOULD HEIGHT mm 180
EJECTOR STROKE mm 135
EJECTOR FORCE KN 70
OTHER
MAX.PUMP PRESSURE MPa 16
PUMP MOTOR POWER kW 30
HEATING POWER kW 22.3
MACHINE DIMENSION(L*W*H) m 5.73x1.45x2.12
MACHINE WEIGHT t 6.4
