US$15,000.00-25,000.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
Face Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Position Tool Post
Power Source
Mechanical Drive
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Transport Package
Export Standard
Production Capacity
600 Sets Per Year
Product Description
Product Description

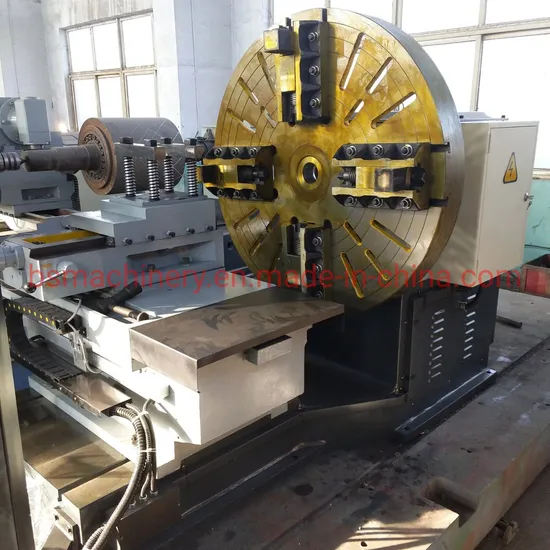

Description of Horizontal Large Face Lathe:
This Horizontal Large Face Lathe or landing lathe is mainly used to process large, medium plate and cylinder workpiece such as flange, valve, gland, plate, motor cover, tire mold, etc.
This lathe can be widely applied in the production field of energy, transportation, oil, chemical industry, mining, railway, car making and so on.
1. Horizontal Large Face Lathe is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.
2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.
3. All the gears are precision grounded, with long life and low noise;
4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.
Product Parameters
| Item | Unit | C6010 | C6016 | C6020 | C6025 | C6030 |
| Chuck diameter | mm | 800 | 1200 | 1600 | 2000 | 2500 |
| Max. turning diameter | mm | 1000 | 1600 | 2000 | 2500 | 3000 |
| Max. length of work pieces | mm | 200 | 400 | 600 | 600 | 800 |
| Max weight of workpiece | T | 1 | 2 | 3 | 3 | 5 |
| Power of main motor | kW | 11 | 11 | 15 | 15 | 22 |
| Spindle speed | r/min | 8-120 | 16-128 | 12-94 | 12-94 | 4-40 |
| Spindle diameter | mm | 190 | 200 | 200 | 200 | 300 |
| Feed way of tool rest | Infinitely variable frequency |
| Horizontal stroke | mm | 320 | 320 | 320 | 320 | 320 |
| Longitudinal travel | mm | 500 | 800 | 900 | 1400 | 1400 |
| Weight | T | 4 | 5 | 8 | 10 | 17 |
Detailed Photos
>>
