AC Metalized PP Film Cbb65 Sh Capacitor Manufacturer

Product Description

Product Description

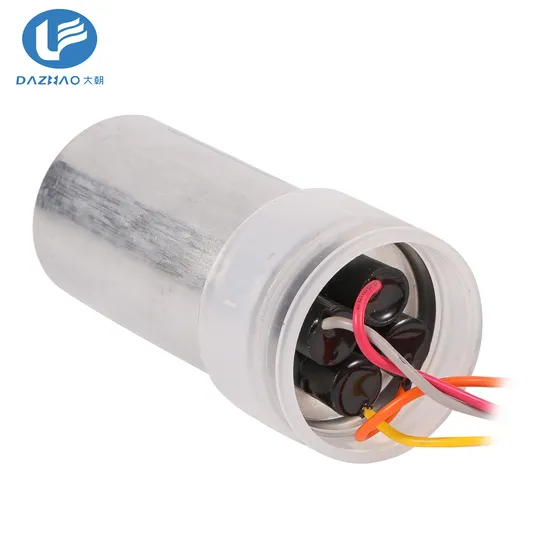

CBB65 AC Motor Running Capacitor For Air Conditioner with CE CQC TUV UL ISI Certifications
Characteristics and purpose
The capacitor has the advantages of low loss factor, high insulation resistance, good self-healing, strong shock current resistance, strong overload current capacity, stable electrical performance, stable flow current, and strong bearing capacity. It is used for washing machines and separate horsepower motors, pumps and is conducive to the start and operation of motors. Detailed Photos

Rated capacity (μF)	Rated voltage (V)	Rated frequency (Hz)	Protection grade	Rated current C1(A)	Overall dimensions
					D±0.1	H±1
5	450	50	S0		30	57
6	450	50	S0		30	57
6.3	450	50	S0		30	57
7	450	50	S0		30	57
8	450	50	S0	11.31	30	57
9	450	50	S0	12.72	30	57
10	450	50	S0	14.14	30	57
11	450	50	S0	15.55	38	85
12	450	50	S0	16.96	38	85
13	450	50	S0	18.38	38	85
14	450	50	S0	19.79	38	85
15	450	50	S0	21.21	38	85
10	450	50	S0	14.14	30.2	68
15	450	50	S0	21.21	30.2	68
16	450	50	S0	22.62	37.9	68
18	450	50	S0		41.4	68
20	450	50	S0	28.27	41.4	68
22	450	50	S0		41.4	68
25	450	50	S0	35.34	45	71
26	450	50	S0		45	71
28	450	50	S0		45	71
30	450	50	S0		45	71
32	450	50	S0	45.24	45	71
35	450	50	S0	49.48	46	93
40	450	50	S0	56.55	50	100
43	450	50	S0		50	100
45	450	50	S0		50	100
50	450	50	S0	70.69	50	100
55	450	50	S0	77.75	56	100
60	450	50	S0		56	100
65	450	50	S0		56	100
70	450	50	S0	98.96	56	100
73	450	50	S0		60	110
80	450	50	S0	113.10	60	110
90	450	50	S0	127.23	60	110

FAQ
We understand your general concerns. Check the Q&A, which will first help you save time and worries. If your question is not listed, please contact us and we will be happy to help you.
Can capacitors be used in AC and DC circuits?
Generally speaking, our capacitors can be applied to both AC and DC circuits. However, most of our products are used for AC circuits.
Does We capacitor comply with EU CE and RoHS products?
yes. All our capacitors meet CE, VDE, and RoHS standards.
Can I print my brand on the capacitor?
Absolutely. We have OEM and ODM capabilities. You are free to choose custom service or our regular high-standard capacitors.
How long does it take to quote?
In most cases, your inquiry will be answered within 24 hours. Please be assured that we will take your inquiry seriously.
May I have a sample?
of course. We will provide sufficient samples for your test free of charge. However, freight is not included.

---
