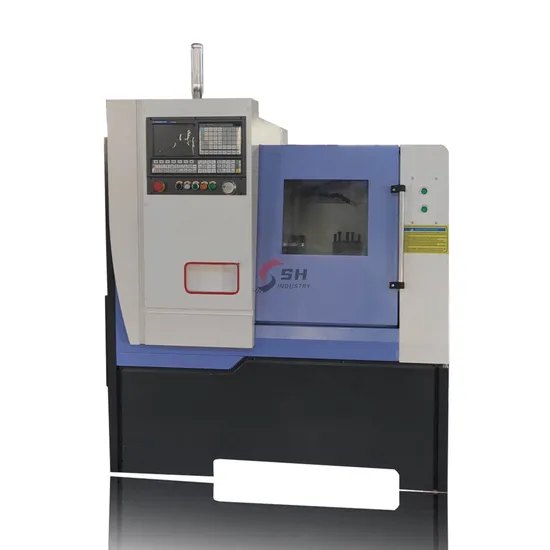

Automatic Metal Horizontal CNC Lathe H36 Flat Bed CNC Lathe Machine Tools

Product Description

Product Description
Automatic Metal Horizontal CNC Lathe H36 Flat Bed CNC Lathe MachineTools
Product Parameters
H series CNC Lathe machine is an economical, practical type machine tools with high quality.It has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirements.Features :Big torque ,high precision spindleHydraulic shift ,easy operateZ axis feed is directly connected which has high transmission accuracy and high positioning accuracyVertical 4 position electric toolpost with high positioning accuracyStandard configuration:GSK control systemGuideway width 400mmManual chuckManual tailstockOptional Configuration :Siemens or Fanuc systemHydraulic chuckHydraulic tailstockElectric turret /Hydraulic turretAutomatic chip conveyorApplication :CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .

SPECIFICATIONS	SPECIFICATIONS	Units	H36	H46
	Swing over bed	mm	360	460
	Swing over cross slide	mm	110	140
	Distance between centers	mm	250	330
	Spindle bore	mm	48	56
	Spindle nose type	-	A2-5	A2-5
	Spindle speed steps	-	Stepless	Stepless
	Spindle speed range	rpm	2500(Optional:4000)	3500
	Turret/tool post	-	Gang type	Gang type
	Tool size	mm	20 x 20	25 x 25
	X axis travel	mm	340	360
	Z axis travel	mm	250	330
	X axis rapid traverse	mm/min	15000	15000
	Z axis rapid traverse	mm/min	15000	15000
	Main spindle motor	kw	4	5.5
	Guide rail type	-	Linear rail	Linear rail
	Machine weight	kg	1500	2200
	Overall dimension	mm	2000x1400x1580	2300x1800x1600

Realistic photos
H series CNC Lathe Machine is an economical, practical type machine tools with good quality.
C The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc,
thread, boring, reaming of axle and disk workpiece.It also can achieve non- -circular curve machining. You
can choose the CNC system and optional accessories according to your requirement.
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
