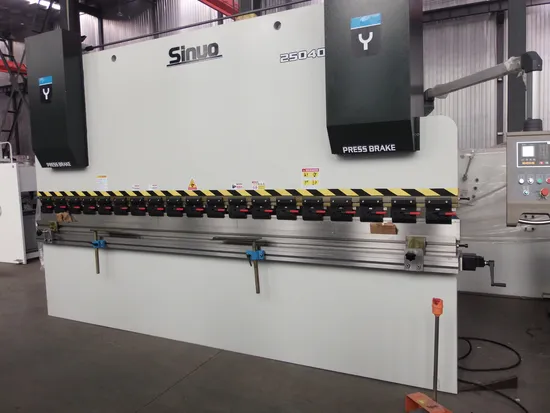

Bending Machine/Hybrid Electric CNC Press Brake/Synchronous Torque CNC Press Brake

Product Description

order numbe	Machine tool model		WXC67K-300T/6000	comments on a form
1	The nominal force		3000KN
2	Bend length		6000mm
3	Distance between columns		5000mm
4	Throat mouth depth		400mm
5	Maximum opening height between the workbench and the slider		580mm
6	Maximum working pressure of the hydraulic system		40Mpa
7	numerical control system		MD320/MD11/E21
8	operating platform	Height (away from the ground)	800mm	Compensation station <no fixed station>
		width	280mm
9	Sliding movement	route or distance of travel	250mm
		carrying idler idler	10mm/s
		return trip	60mm/s
		work;	8mm/s
10	Power of main motor	rate of work;	18.5KW
		speed	1440r/min
11	Plate thickness	wallboard	70mm
		Working table plate	90mm
		slider	80mm
12	outline dimension	Long * wide * high	6200*2100*3400

The frame is welded by the left and right columns, fuel tank, bench and bottom beam, with high strength and easy installation and debugging.
The main hydraulic cylinder and slider are the main moving parts of the bending machine. The main hydraulic cylinder structure is mainly composed of cylinder block and piston. The seals are mainly inlet rings with good sealing performance.
The machine tool has a front support frame to facilitate the material push. .Three-axis standard (Y1.Y2.X).
.Integral welding structure.
.Italy ESA or Netherlands DELEM NC system.
.Germany Rexroth or Holland servo manifolds.
.Germany HEIDENHAIN grating ruler.
.Servo motor and drive.
. Imported seals
.Standard upper and lower mold.
.Front material supporting frame.
Selectable:CYBEIEC CNC

---
