Universal Milling Machine with Swivel Head UM1460

Product Description

Product Description

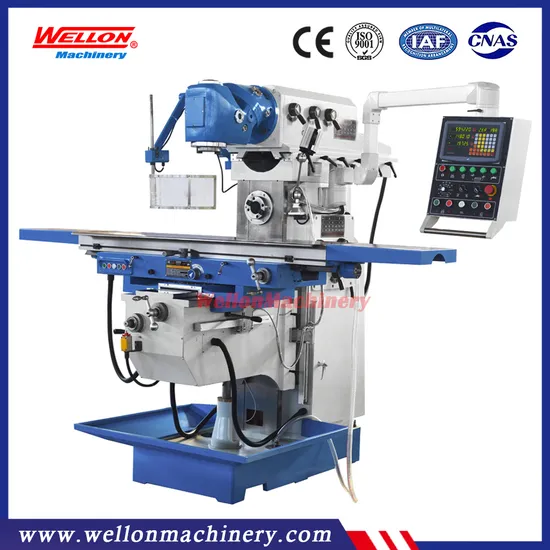

UM1460 Universal Milling Machine With Swivel Head
Detailed Photos

There is enough space can make the vertical spindle through inside,see red area, it is good when horizontal milling, the vertical milling head will not interfere the horizontal milling.

Vertical milling head with bigger module gears

Vertical motor 5.5kw more strong (Weida and Xili model XL6436 is 4 kw)
Connect plate (in red color),enlarged longer and more thickness to make the milling head working more stable

Automatic lubricating

Slider with operate button, more convenient to operate the machine
One handle to operate the X Y Z axis feeding


Product Parameters

Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials
Technical Parameter:

Specifications	Unit	UM1460
Table size	mm	1700×400
Table travel (X/Y/Z)	mm	1300/450/650
T-slots(NO./width/pitch)	mm	3/18/100
Table feed speed X axis	mm/min	25~800
Table feed speed Y axis	mm/min	25~800
Table feed speed Z axis	mm/min	8~267
Spindle taper		7:24 IS050 (H) 7:24 IS050 (V)
Arm travel	mm	700
Distance from vertical spindle to table	mm	200-850
Distance from horizontal spindle to table	mm	0-500
Distance from spindle to arm	mm	200
Spindle speed range	r.p.m	50-1520 (V) 60-1850 (H)
Spindle speed steps	steps	12
Main motor power	Kw	5.5 (H) 5.5 (V)
AC servo feed motor torque	N.m	12
Overall size	mm	2245×2100×2000
Net weight	kg	3700

Standard accessories:
Mill chuck set
Draw bar
Mill arbors
Worktable swivel ±50 degree
Reduction sleeve
Coolant device
Coolant tray
Automatic central lubrication
Foundation bolts
Tools
Optional accessories:
Machine vice 160mm
Machine vice 200mm
3-Axis Digital readout
Universal Dividing Head F11-160A
Rotary table TSL300
58 pcs Clamping kits
Spindle protection
Worktable protection
Slotting head
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
