Open Cam Paper Cup Machine with Gear System

Product Description

NAME: Paper Cup Machine
Model No.: YT-LI

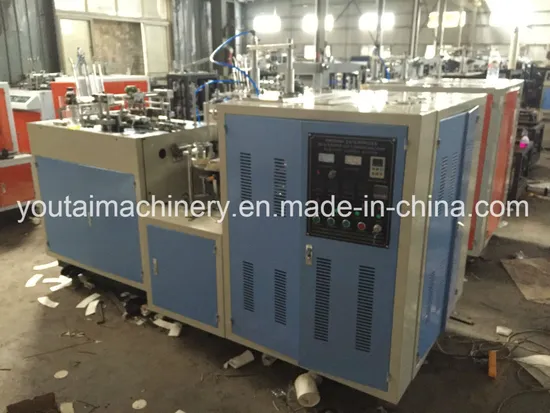

YT-LI paper cup machine is an automatic multi-working-station machine with photosensor detecting, failure alarming and counting. It is suitable for making paper cups with single/double PE with the procedure of automatic paper feeding, sealing, silicon-oil lubricating, bottom punching, heating, knurling, curling and bowl discharging. And it is an ideal equipment of producing drinking cup, ice-cream cup and other food cone-shaping containers.

Model No.	YT-LI1
Cup Size	2-12oz
Raw Material	one-side PE paper(170-320g/m2)
Productivity	45-55pcs/min
Power Source	380v/220v,50hz or others required
Total Power	4kw
Weight	1350kg
Size(L*W*H)	2300*1150*1600mm
Packaging	Wooden Case

Model No.	YT-LI2
Cup Size	3-18oz
Raw Material	one-side PE paper(170-320g/m2)
Productivity	45-55pcs/min
Power Source	5kw
Weight	1600kg
Size(L*W*H)	2700*1350*1750mm
Packaging	Wooden case

Model No.	YT-LI3
Cup Size	18oz,22oz,24oz,32oz etc.
Raw Material	one-side PE paper(170-320g/m2)
Productivity	35-45pcs/min
Power Source	6kw
Weight	1800kg
Size(L*W*H)	2900*1350*1900mm
Packaging	Wooden Case

---
