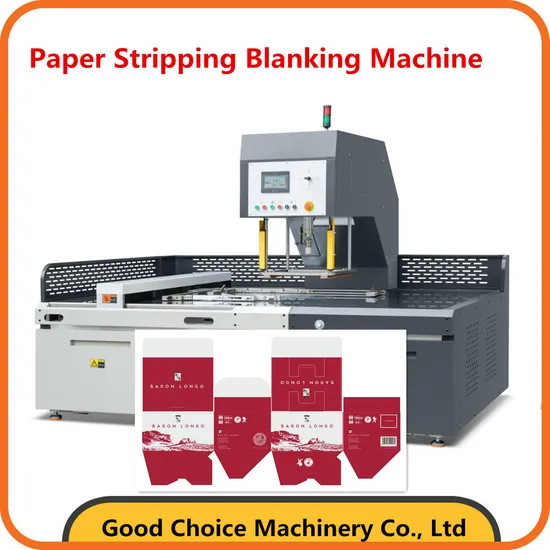

Automatic Waste Paper Stripping Blanking Machine with Paper Sheet

Product Description

Automatic Stripping Machine
The product is a preferable choice for stripping process after die cutting, such as tags, labels, paper cups, medicine packages, wine packages, cosmetic packages and so on. It saves labor, improve the product quality, and increase the production efficiency.
Centralized lubrication system
Paper gauge with hidden motor and ball screw
Adjustable hydraulic system
Safety fence
Our Advantages 1 Comparing to traditional stripping machine which uses gantry frame as the base for installing the stripping mould, our new design adopts one-side independent standing base for installing the stripping mould; this design is space saving, and convenient for operating. 2 Hidden type servo motor and ball screw ensures a precise pile positioning.
3 Adjustable hydraulic system provides adjustable pressure for processing of different materials of different sizes and weights.
4 Stripping needles (rods) are quick and easy to change to fit different products formats and patterns.
5 Automatic lubricating system carries out regular lubrication, which greatly extend the service life of the machine.
6 The operation panel adopts visual button to avoid safety accident caused by wrong operation. Its also easy and quick to program at the touch screen.
7 Safety fence at operation side protects the safety of personnel when the machine is running.
Product Parameters

Machine technical parameters
Model	HTQF-1080
Max sheet size (X) mm	1080
Max sheet size (Z) mm	780
Min sheet size (X) mm	650
Min sheet size (Z) mm	450
Max pile height mm	100
Min pile height mm	40
Work table height mm	850
Max product size to be punched out	450*450
Min. product size to be punched out	30*30
Stripping speed times/min	15-22
Max. force (bar)	70

Manipulator arm technical parameters
Model	HTQF-1400 (for 1080R)
Trip	1400 mm
Clamping range	30-180 mm
Clamping weight	50 -1500 g
Empty running speed	5-50 m/minute
Air source	4-7 bar
Air consumption	1 L/min
Power supply voltage	220V, 50HZ
Power consumption	0.4KW
Net weight	200 kg

Rotating mould technical parameters
Model	HTQF-1080T
Trip	0-180 degrees
Rotating speed	10-80 degree/second
Air consumption	1 L/min
Air source	4-7 bar
Power supply voltage	220V, 50HZ
Power consumption	0.75KW

Machine installation data
Model	HTQF-1080
Machine width mm	2840
Machine depth mm	2050
Machine height mm	1930
Net weight kg	2000
Air source Bar	4-7
Air consumption L/min	2
Power supply voltage	360V-420V,50/60HZ
Power consumption A	4.2
Insurance current A	10
Input power	3hPE

Three view dimension drawing of HTQF-1080

Machine installation data
Model	HTQF-1080R
Machine width mm	3470
Machine depth mm	2610
Machine height mm	1930
Net weight kg	2200
Air source Bar	4-7
Air consumption L/min	4
Power supply voltage	360V-420V,50/60HZ
Power consumption A	4.6
Insurance current A	10
Input power	3hPE

Three view dimension drawing of HTQF-1080R (Including manipulator arm)
FAQ Can you tell me the following points?
1. Your product type (such as paper cups, paper boxes, etc.), it is best to provide drawings for our engineers to view
2. Your product's daily output
3. Your budget

---
