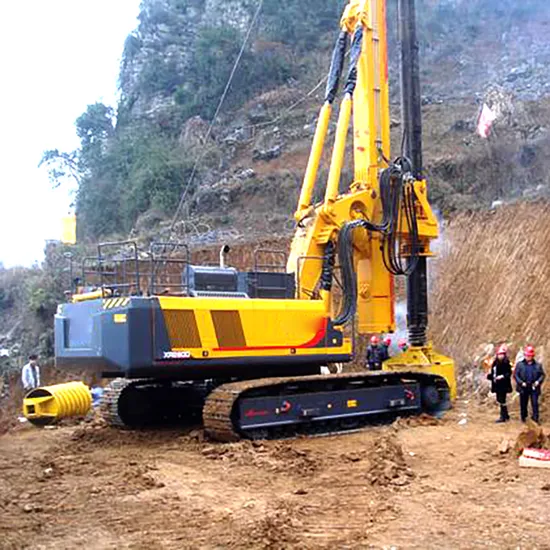

1.5m Drilling Diameter Rotary Drilling Rig Xr150d with 56m Depth with Great Price

Product Description

1.5m Drilling Diameter Rotary Drilling Rig XR150D with 56m Depth with Great Price
Specification
1 It is economical and efficient, mainly used in media and small-diameter pile civil construction;
2 Diesel engine has load induction and output power auto-control; the fuel consumption drops 5-10%;
3 5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
4 The special lubricating system makes sure that it can work under high-temperature environment;
5 The removable and symmetrical structure design doubles the service life of rotary drive key;
6 Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
7. Optional chassis incline alarm enhances construction safety;
8 Mast verticality auto-adjusting technology promises the pile accuracy.

Main performances	Unit	Parameters
Overall height	mm	18,432
Operating weight	t	46
Max. pile diameter	mm	1,500
Max. pile depth(friction Kelly/inter-locking Kelly)	m	56/44
Max. output torque	kN.m	150
Speed of rotation	rpm	6.5~40
Crowd force	kN	160
Line pull	kN	160
Stroke	mm	4,250
Main winch
Line pull(1st layer)	kN	160
Rope diameter	mm	28
Max. line speed	m/min	70
Auxiliary winch
Line pull(1st layer)	kN	60
Rope diameter	mm	14
Max. line speed	m/min	60
Forward		5
Lateral		±5

---
