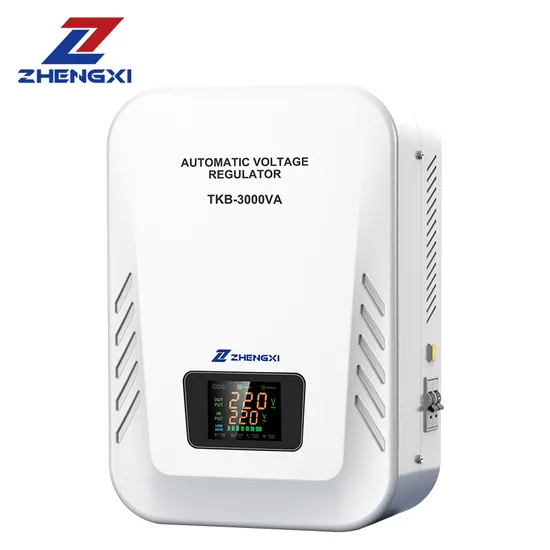

Automatic Wall Mounted Voltage Regulator Stabilizer Single Phase AVR AC Electric

US$32.00
1-99 pieces
US$30.00
100-299 pieces
US$28.00
300+ pieces

Basic Info.

Model NO.
TKB
Frequency Characteristics
Power Frequency
Usage
SVC
Frequency
50~60Hz
Size
Small
Iron Core Shape
Ring
Power Source
Linear Regulated Power Supply
Application Range
Home Use
Brand
Zhengxi
Response Time
1s
Product Name
Wall Mounted Voltage Regulator
Input Voltage
80V-260V or Customized
Capacity
1kVA to 10kVA Available
Output Voltage
220V+/-10% or Customized
Certificate
CE/Is09001
Display
LCD Screen
Over Voltage Protection
Yes
Over Load Protection
Yes
High Temperature Protection
Yes
Under Voltage Protection
Can Be Option
Transport Package
Export Standard Packing
Specification
305*200*85MM 4.033KG
Trademark
ZHENGXI or OEM
Origin
Zhejiang, China
HS Code
8504401990
Production Capacity
50000pieces/Year

Packaging & Delivery

Package Size
200.00cm * 85.00cm * 305.00cm
Package Gross Weight
4.000kg

Product Description

Technical Parameters --
Specification TKB-1KVA up to 10KVA
Input Voltage 80-260V AC (Customizable)
Output Voltage 220V AC (Customizable)
Output Precision ±10%
Frequency 50/60Hz
Power Factor 0.8
Efficiency >95%
Control Type Relay Type
Operating Temperature -10~+40ºC
Over/Low Volt Protection YES
Circuit Protection YES
Digital Display Show input and output voltage
Product Parameters TKB series automatic AC relay type regulator consists of autotransformer, sampling control board and actuator. When the grid voltage is unstable or the load changes, the automatic sampling control circuit sends out a signal to make the output rated voltage reach a stable state. Product Description 1.This product has the waveform distortionless,reliable performance,long-term operation and other characteristics 2.With time delay, over-voltage, under-voltage protection and other functions 3.Widely used in the field of electric power which needs to stabilise voltage, it is an ideal voltage stabilisation power supply to ensure the normal operation of your electrical equipment. Company Profile FAQ Q1: What is the Guarantee? A1: We offer a one-year warranty from the date of purchase. If any accessories are damaged, simply provide photos of the affected part, and we will supply a replacement free of charge. For bulk orders, we also include spare parts for easy replacement. Technical support is available upon request. Q2: Can we put/show our own Logo on your products? A2: Yes, we support logo customization for bulk orders. Q3: Is OEM/ODM available? A3: Yes! We provide customized designs and manufacture automatic voltage regulators/stabilizers based on customer specifications. Q4: What is the MOQ?
A4: For small-capacity voltage stabilizers (default configuration), MOQ is 10 sets.For large-capacity models, MOQ is 1 set. Q5: Can you offer Form A or Form E or C/O ? A5: Yes, we can apply for these certificates from our local government upon request. Q6: What kind of Certificates do you have? A6: We have CE, ISO9001, and SGS certifications. Q7: What is the Terms of Payment? A7:We accept L/C, T/T, D/P, D/A, Western Union, and MoneyGram (for small payments).
