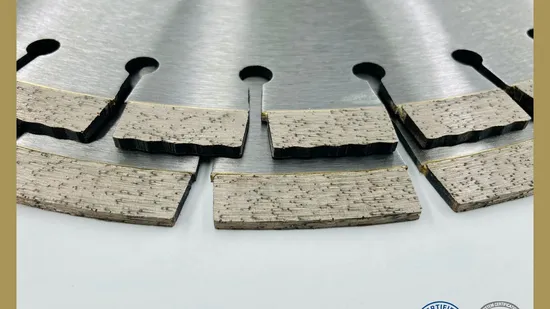

Diamond Saw Blade Segments for Granite Marble Stone

US$0.50-1.50 200 Pieces (MOQ)

Basic Info.

Model NO.
JOY-S04
Blade Material
Diamond
Bond
Very Soft, Soft, Medium Bond, Hard, Very Hard
Grit Available
6# 16# 20# 30# 60# 80# 100# 150# 200# 400# etc.
Color
Black, White, Blue, Red, Gold, Silver, and Customi
Application Machine1
Sti, Prepmaster, Stonekor Grinde
Application Machine2
Terrco, Blastrac, Blastpro, Diamapro Grinder
Application Machine3
Terrco, Microban, Ameripolish, Sase Grinder Plate
Application Machine4
Spe Cps, Diamatic, Bartell, Scanmaskin, Schwamborn
Application Machine5
Klindex, Edco, Werkmaster, Airtec Grinder Plate
Advantage
Fast Grinding Long Working Life, Stable Perform
Usage
Stone, Concrete, Glass, Ceramics, Steel, Synth
Certification
CE, ISO9001, ISO2000, SGS, MPa
Sample Production Time
7 Days
Shipping
by Air, Sea Freight, Express
Manufacturing Experience
Over 18 Years Diamond Tool Manufacture Experience
Transport Package
Carton Box, Color Box, White Box, Double Blister,
Specification
OEM ODM Customized
Trademark
JOY
Origin
China
HS Code
6804219000
Production Capacity
30000000 PCS/ Month

Packaging & Delivery

Package Size
35.00cm * 35.00cm * 35.00cm
Package Gross Weight
1.000kg

Product Description

Product Description
1. The blade has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.
2. Good cutting result: smooth cutting, flat surface and even size.
3. Stable cutting, narrow cutting gap, stone waste reduction.
4. M-shape segment is easy for diamond opening.
Product
Name		 Diameter
(mm)		 Steel Core
Thickness(mm)		 Segment
Dimension(mm)		 Segment
Number		 Application
Edge Cutting Segment For Stone 300 2.2 40x3.2x10(15,20) 21 Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz, Artificial Stone, Microcrystal Stone
350 2.2 40x3.2x10(15,20) 24
400 2.6 40x3.6x10(15,20) 28
450 3.0 40x4.0x10(15,20) 32
Splitting Segment For Stone 500 3.0 40x4.0x10(15,20) 36
550 3.6 40x4.6x10(15,20) 40
600 3.6 40x4.6x10(15,20) 42
650 4.0 40x5.0x10(15,20) 46
700 4.0 40x5.0x10(15,20) 50
750 4.0 40x5.0x10(15,20) 54
800 4.5 40x5.5x10(15,20) 57
850 4.5 40x5.5x10(15,20) 58
Block Cutting Segment For Stone 900 5.0 24x7.0/6.2x13(15,20) 64
1000 5.0 24x7.0/6.2x13(15,20) 70
1200 5.5 24x7.4/6.6x13(15,20) 80
1400 6.0 24x8.0/7.2x13(15,20) 92
1400 6.5 24x8.4/7.6x13(15,20) 92
1600 7.2 24x9.2/8.4x13(15,20) 108
1800 7.5 24x10/9.2x13(15,20) 120
2000 8.0 24x11/10x15(20) 128
2200 9.0 24x11/10x15(20) 132
2500 9.0 24x12/11x20(30) 140
2700 9.0 24x12/11x20(30) 140
3000 9.3 24x13/12x20(30) 160
3500 9.5 24x13.5/12.5x20(30) 180
Other specifications are available upon request.
Silent and non-silent blades are available for choice.
Detailed Photos

Product Parameters
Diamond Segments For Granite:
Diameter (mm) Segment Size (mm) Segment Number
Φ300 40*3.2*10 21
40*3.2*12
40*3.2*15
Φ350 40*3.4*10 24
40*3.4*12
40*3.4*15
Φ400 40*3.6*10 28
40*3.6*12
40*3.6*15
40*3.6*20
Φ450 40*4.0*10 32
40*4.0*12
40*4.0*15
40*4.0*20
Φ500 40*4.2*10 36
40*4.2*12
40*4.2*15
40*4.2*20
Φ600 40*4.8*10 36/42
40*4.8*12
40*4.8*15
40*4.8*20
Φ700 40*5.2*10 42
40*5.2*12
40*5.2*15
40*5.2*20
Φ800 40*6*10 46
40*6*12
40*6*15
40*6*20
900 24*7/6.4*12 64
24*7/6.4*15
24*7/6.4*20
1000 24*7/6.4*12 70
24*7/6.4*15
24*7/6.4*20
1200 24*8/7.4*12 80
24*8/7.4*15
24*8/7.4*20
1300 24*8.4/7.8*12 88
24*8.4/7.8*15
24*8.4/7.8*20
1400 24*8.4/7.8*12 92
24*8.4/7.8*15
24*8.4/7.8*20
1600 24*9.2/8.4*12 108
24*9.2/8.4*15
24*9.2/8.4*20
1800 24*10/9*12 120
24*10/9*15
24*10/9*20
2000 24*10.5/9.5*15 128
24*10.5/9.5*20
24*10.5/9.5*25
2200 24*11/10*15 132
24*11/10*20
24*11/10*25
2500 24*11.5/10.5*15 140
24*11.5/10.5*20
24*11.5/10.5*25
3000 24*13.5/12.5*20 160
24*13.5/12.5*25
24*13.5/12.5*30
3500 24*14.5/13.5*20 180
24*14.5/13.5*25
24*14.5/13.5*30

Our Advantages
Company Profile

Application Machine:
