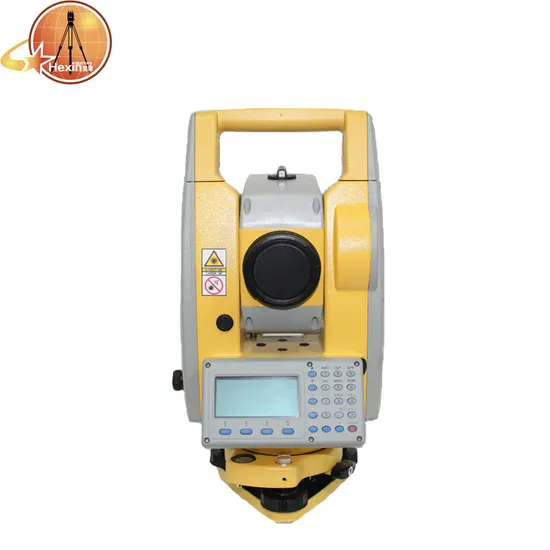

South N6+ WiFi Bluetooth 1000m Non-Prism Types of Total Station

Product Description

KEY FEATURES
New Battery Housing ▪Easy to lock and release ▪One hand operation Trigger Key ▪Faster operation ▪Triggerin allmeasurementsurface Easy Viewing Display ▪6-line with backlight on both faces. ▪Easy-to-use 24-key pads with alphabet entry. Relocated Tangent Screw Lock and fine adjustmenttangent screw USB Flash Disk USB disk for data import&export, more convenient and keep itsafe
PRODUCT SHOW
PRODUCT SPECIFICATION

Distance Measurement	Reflectorless	1000m/1500m
	Single Prism	5000m
	Accuracy: Reflectorless	3+2ppm
	Accuracy: Reflector	2+2ppm
	Measuring Interval Reflector	<0.3s In Fine <0.1s In Tracking
	Measuring Interval Reflectorless	0.3s-3s
	EDM type	Coaxial
	Minimum reading	0.1mm
	Unit	Meter/US.feet/ Int.feet/Feet-inch
Angle Measurement	Accuracy	2"/ 5"
	Reading system	Absolute encoding
	circle Diameter	79mm
	Detection Method	V: Dual, H: Dual
	Minimun Increment	1"/5"
Telescope	Image	Erect
	Tube Length	154mm
	Effective Aperture	45mm (EDM 50mm)
	Magnification	30x
	Field Of View	1°30'
	Resolving Power	3"
	Minimum Focus Distance	1.2m
	Reticle Illumination	4 Brightness Levels
Keyboard And Display	Keyboard	Alphanumeric 24 Keys
	Display	Black & White
	Resolution	160*96 dpi
	Position	Face 1, Face 2
Operation System	Operation System	None
	Processor	None
	Memory	32000 Points
Interface	WIFI	None
	Bluetooth	Class II, V2.0+EDR
	SD Card	Yes
	Serial Port	Yes
	Mini USB	Yes
	Mirco USB	None
	USB Flash Disk	None
	SIM Card	None
Compensator	System	Liquid, Dual Axis
	Working Range	±4'
	Accuracy	1"
Plummet	Laser Plummet (Default)
	Accuracy	±1.5mm at 1.5m
	Laser Brightness	Adjustable
	Wavelength	630-670nm
	Laser Class	Class 2 /IEC60825-1
	Laser Power	<0.4mW
	Optical Plummet (Optional)
	Image	Erect
	Magnification	3x
	Focusing Range	0.5m --
	Field Of View	5"
	Accuracy	1.5mm @1.5m
Battery	Type	Lithium
	Voltage	7.4V
	Operating time	8 hours
Vial	Plate Vial	30" /2mm
	Circular Vial	8' /2mm
General	IP Rate	IP55
	Temperature Range	-20°C -- +50°C
	Dimension	160*150*330mm
	Weight	5.5kg

PACKING & SHIPPING
PAYMENT
COMPANY INFORMETION
Shanghai Hexin Survey Instrument Co., LTD has 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
Q:How to turn off voice broadcast of receiver?
A: a. Enter the WEBUI, find the voice switch in the settings page and turn it off.
b. Controller Software→Device→Device Setting, turn off the "enable voice", and click"ok"
Q: Can the base station and rover station be interchangeable?
A: The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.
Q: What is CORS?
A: CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specific serverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.

---
