Communication Cable CCTV CATV RG6 CCS Conductor Aluminum Shield PVC Jacket Coaxial Cable

Product Description

We are 26 years coaxial cable, fiber optic cable, data cable manufacturer.

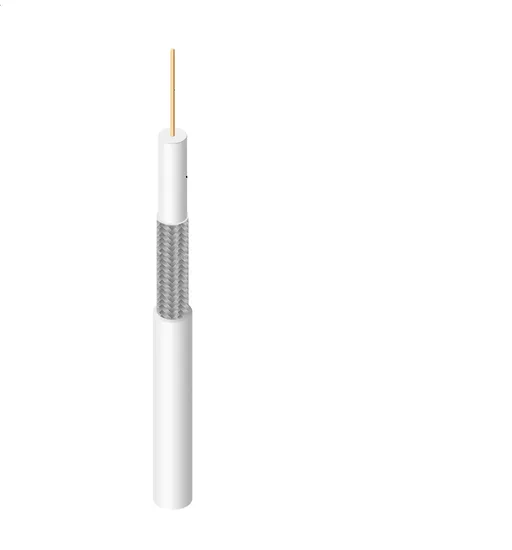

Communication Cable CCTV CATV RG6 CCS Conductor Aluminum Shield PVC Jacket Coaxial Cable
DESCRIPTION
High-physics foamed coaxial cable is a semi-air insulated cable. The inner conductor is made of high-quality oxygen-free copper wire (or copper-clad aluminum wire or copper-clad steel wire);The mutually closed air holes, the adhesion between the insulation and the inner conductor is firm; the outer conductor is braided with aluminum foil longitudinally wrapped with aluminum-magnesium alloy wire or tinned copper wire; with a PVC or PE outer sheath.
Model:RG59,RG6,RG7,RG11,Q540
FEATURES
Low attenuation, high return loss;
good water resistance, aging resistance;
APPLICATIONS
Video
Security Cameras
Satellite
PERFORMANCE

Mechanical Characteristics	Operating temperature range	-20ºC--+80ºC
	Installation temperature range	-30ºC--+80ºC
	Cable weight	46.0±0.5kg/km
Electrical Characteristics	Nom.Impedance	75±3Ω
	Frecuency test	up to 3Ghz
	Maximum voltage	≥3.0KV
	Return loss	≥20dB(Above 1000MHZ allows 3dB downward deviation)
performance	Pass band	5MHz-2300MHz
	nominal capacitance	16.5 [pF/feet]
	propagation speed	82.50%
	Max atenuación at dB/30m@20ºC	500MHZ≥70
		1000MHz<6.4dB
		1450MHz<7.7dB
		1800MHz<8.3dB
		2000MHz<9.2dB
		2250MHz<9.9dB
		2500MHz<11.4dB

FAQ
1.Are you the factory?
Yes, we are the factory with 26 years' history.

2. What is your main products?
Fiber optic cable: Outdoor/Indoor
Central loose tube/Stranded loose tube
FTTH Drop cables
ADSS
Coaxial cable: RG59/RG6/RG11
Network Data cable:UTP/FTP/SFTP
CAT5/CAT5e/CAT6/CAT7
Power cable: RVV series products
Various combination cables: Coaxial & Data cable
Coaxial & Fiber optical cable
RVV & Data cable
RVV & Fiber optical cable
3. Do you have certificate for raw material?
Yes, we do. We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Sample ready date is 2-3 days
Mass production is around 7-14 days
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 2KM
MOQ for coaxial cable:1KM
There is no MOQ required for CAT5e/CAT6 cable, as there's stock for normal kinds.
6. Are you willing to cooperate with distributors?
We are currently seeking distributors in many countries around the world for long-term cooperation.
7. Have you worked with operators?
Yes, we have many years of experience in cooperation and supply with operators.
8. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services, any of which is optional.

---
