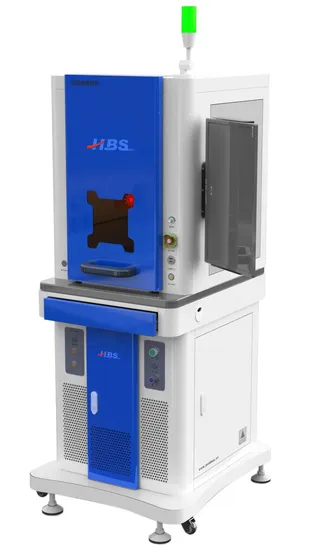

PCD Cutter Laser Chip Groove Engraving Machine

Product Description

PCD cutter Laser Chip Groove engraving Machine
This device is mainly developed for the difficulty of processing superhard materi
als. lt is generally used for machining chip grooves chamfers, countersinks, etc.
of CNC turning tools, milling cutters petroleum drill bits, etc. made of superhard
materials
This device is mainly developed for the difficulty of processing superhard materi
als. lt is generally used for machining chip grooves chamfers, countersinks, etc.
of CNC turning tools, milling cutters petroleum drill bits, etc. made of superhard
materials

Name	PCB cutter laser chip groove engraving machine
Model	HBS-GQ-20X
Processing Method	nanosecond laser (customizable)
XYZ Machining Range mm	15*18*150nanosecond laser
XY AXIS POSITIONING ACCURACY mm (25°C)	0.01
Z-POSITIONING ACCURACY mm	0.02
WORKPIECE POSITIONING XYR	Manual
COOLING METHOD	Air clloing

COMMON BLADE POSITIONING FIXTURES	come with
COMMON BLADE POSITIONING FIXTURES	come with
BENCHMARK PLATFORM	marble
EXTERNAL DIMENSIONS MM	930*930*1900
Power Supply	220V
ENVIRONMENTAL TEMPERATURE AND HUMIDITY	17-25°C 50%-75%

High stability
Marble bed ensures machine rigidity and shock absorption performance,ensuring
high-precision requirements.
Low noise
The equipment processing process is a sealed space, so the noise is relatively low.
Environmental Protection and Safety
The entire equipment is sealed and equipped with a dust collection interface.lt comes
with a built-in dust collection device to ensure a clean environment Laser protective plate
observation window. convenient for observing processing conditions at any time.
High precision positioning
The equipment adopts manual visual positioning. which is more flexible and has higher
positioning accuracy and is compatible with the blades produced by manual grinding
machines.
Energy saving and low power consumption
The whole machine has automatic temperature control and heat dissipation, which
greatly saves electricity consumption .There are basically no consumables and mainte
nance free.
Simple and easy to operate
The equipment is easy to use and operate, and personnel can start working after simple
training

---
